Description

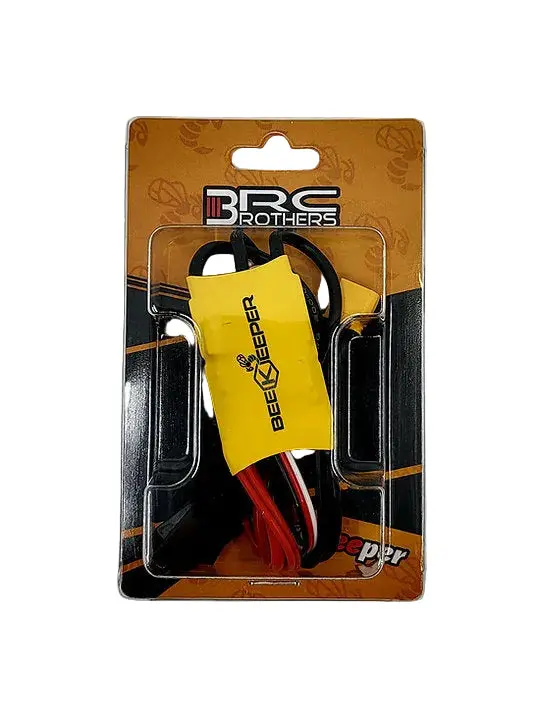

The XT30 BeeKeeper is an AM32 based brushless esc that is silent. It comes with 2 jst power leads for direct-power applications. It has an internal BEC to run low power shift servos, lights, etc.. from the receiver. These will come pre-programmed with optional waterproofing, if requested.
The BeeKeeper is meant for low geared crawlers. It can not be used for bashers or high-power applications. It works best with 10pole to 14-pole motors. Any 1/10th scale or smaller truck from 1lb to 20lb is fine with proper gearing. The heavier the truck, the lower the gearing required. When using high KV motors from 2500kv 14-pole, up to 3500kv 10-pole, make certain to gear as low as possible. 2 speed trucks should use lower KV motors due to the taller 2ond gear.
Waterproofed. This esc is completely submersible. We use a dipping process that is then heat treated, with Infrared, to cure. The creates a more robust waterproofing.
Features:
- Low voltage protection
- RPM lock
- Auto cell detection
- Thermal protection
- Am32 firmware
- 1 year warranty
Specs:
- Dimensions: 37mm long x 25mm wide x 7mm tall
- Weight: 34.3g with leads, wires, plug
- Battery connector: XT30
- Motor connectors: 4mm bullets
- Voltage: 7.2-14.8 (2s-4s)
- BEC: 6V/3A
- Rated Current: 30amps continuous/40amps for 10sec
- 10-pole: 500kv-3500kv
- 14-pole: 500kv-2500kv
- Suggested gearing: 50:1 or lower(70:1)
