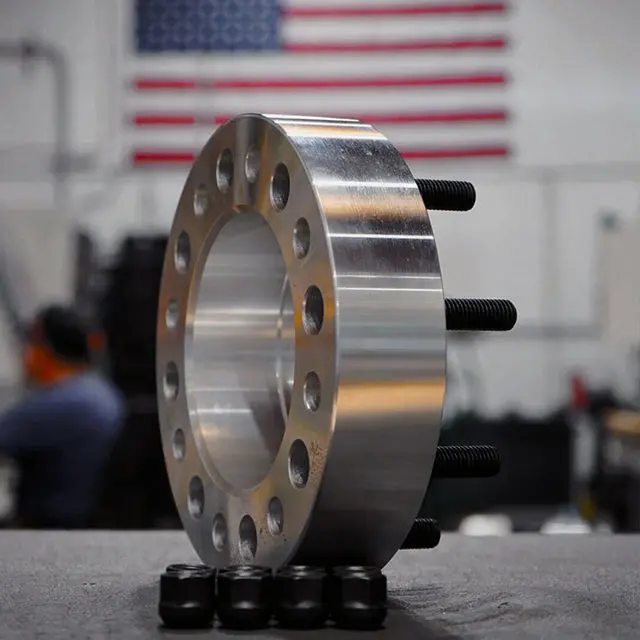

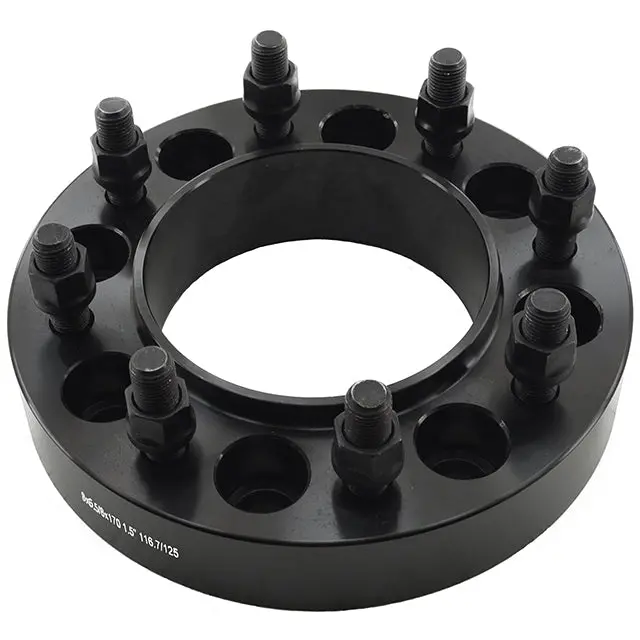

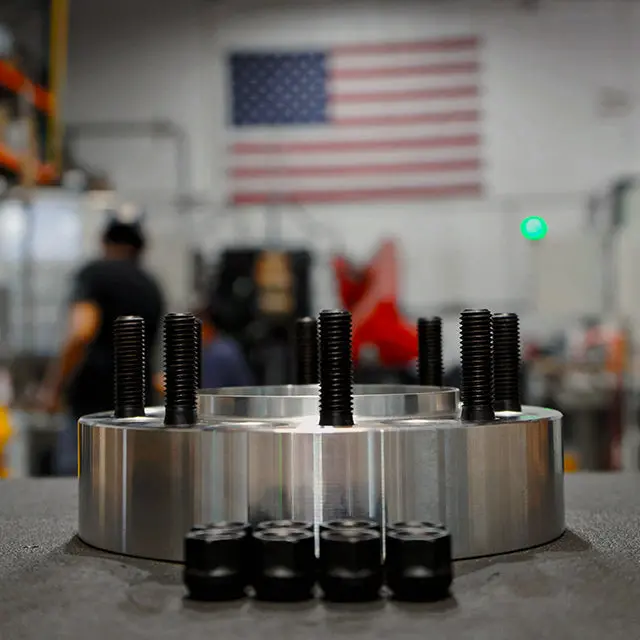

8×6.5 To 8×170 Wheel Adapters Hub Centric Wheel Spacers – GM Ram Ford

Fully Hub Centric Wheel Adapters

Made to Order: This product is made to order.

Sold As: 1 Pc Wheel Spacer Adapter with Mounting Lug Nuts

Complete Set: If you need a complete set, select 4 under quantity.

Custom Sizes: Looking for a custom size or thickness? Give us a call at (310) 763-1437.

Features

• These 8×6.5″ To 8×170 MM Conversion Wheel Adapters Will Work With Factory & Aftermarket Wheels
• Hub/Wheel Centric design ensures no vibration at high speeds.
• Enhances vehicle handling characteristics.
• Corrects incorrect wheel offsets.
• Provides an aggressive stance, improving vehicle appearance.
• Constructed from 6061 T-6 aluminum billet bars.
• Specifically designed for extreme duty vehicles and safe for towing.
• Includes all necessary mounting hardware.
• Comes with a limited lifetime warranty.
• Made in Lynwood, California, USA

Specifications

• Vehicle Bolt Pattern: 8×6.5″
• Vehicle Hub Bore: 116.7 MM | 121.3 MM | 125 MM
• Wheel Bolt Pattern: 8×170 MM
• Wheel Bore: 125 MM
• Thread Pitch: 14×1.5 | 9/16-18
• Thickness: 1″ – 5″
• Lip Thickness: 0.38″
• Material: Billet Aluminum 6061 T-6
• Hardware: 10.9 Steel
• Finish: Raw Aluminum
• Torque Specs: Factory specs recommended

Vehicle Compatibility

Year	Make	Model	Thread Pitch
1999-2010	Chevrolet	Silverado 2500 HD	14×1.5
1999-2010	Chevrolet	Silverado 3500 HD SRW	14×1.5
1999-2010	GMC	Sierra 2500 HD	14×1.5
1999-2010	GMC	Sierra 3500 HD SRW	14×1.5
1994-2011	Dodge	Ram 2500	9/16-18
1994-2011	Dodge	Ram 3500 SRW	9/16-18
2012-2023	Ram	2500	14×1.5
2012-2023	Ram	3500 SRW	14×1.5
1988-1998	Ford	F-250	9/16-18
1988-1998	Ford	F-350	9/16-18

Frequently Asked Questions

What is the maximum towing capacity?

Our wheel spacers and adapters will not limit your vehicle’s towing performance or capacity. When installed correctly, you will not experience any issues.

Installation Instructions

• It is very important that your studs do not extend past the face of the wheel spacer/adapter. If they do, you will need to trim them down.
• Minimal trimming of your factory studs is required for adapters 1.5″ or smaller.
• Torque Specifications: Use factory torque specifications to mount the wheel spacer adapter and your wheels
• It is recommended to use blue or red Loctite on the vehicle stud side
