Bendix-Scintilla R-4360 Wasp Ignition System Technical Service Bulletin (Form L-153-2)

Description

Bendix-Scintilla Ignition System Used on Pratt & Whitney R-4360 Wasp Major Aircraft Engines. This Ignition system consists of seven separate D4RN-2 magnetos. Revised October 1948, Form L-153-2.   29 Pages

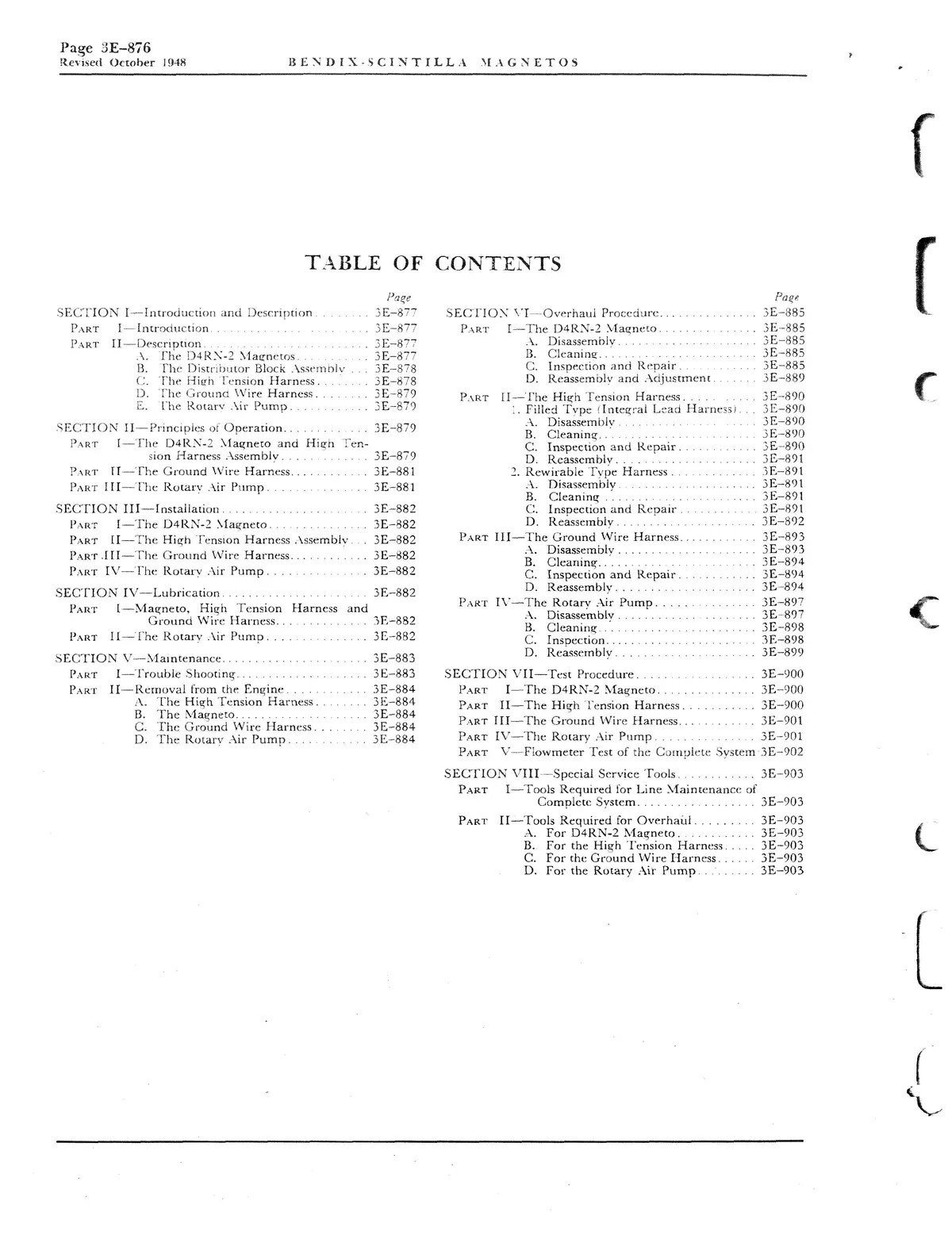

Contents: Introduction and Description, Principles of Operation, Installation, Lubrication, Maintenance, Overhaul Procedure, Test Procedure, Special Service Tools, Tools Required for Overhaul
