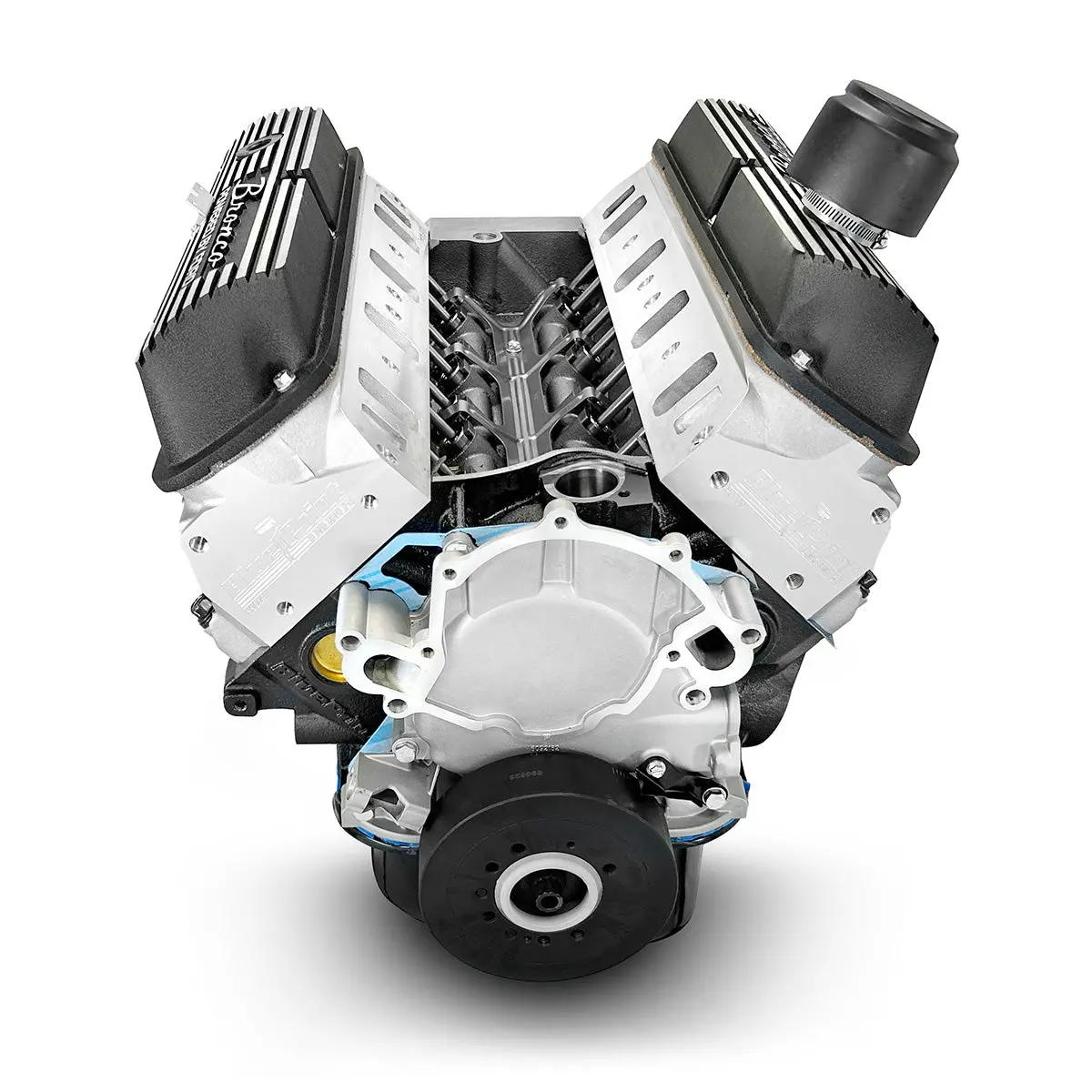

Ford 302 CI Small Block Long-Block Engine – 365 HP, Bronco Edition

Description

Description:

• Horsepower & Torque: 365 Horsepower / 365 FT. LBS. Torque
• Compression Ratio: 9.5:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Crank
• Hypereutectic Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Rotating Assembly:

• Cast Crankshaft
• 3.000″ Stroke
• OEM Type 5.090″ Connecting Rods
• Hypereutectic Pistons
• 50oz Externally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads -HP9009
• 60cc Chamber
• 2.02″ Intake / 1.60″ Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .533 Intake / .544 Exhaust Lift
• 215 Intake / 220 Exhaust Duration
• @.050-114 Degree Lobe Separation

Ignition Timing:

• 10-16 Degrees Initial, 32-34 Total

Also Includes:

• Bronco Script Valve Covers
• Harmonic Balancer
• Dual/Rear Sump Oil Pan
• Timing Cover

Notes:

• Recommended break in oil for your BluePrint Crate Engine: BPP710
• Not for EGR
• Engine timing cover is designed for standard rotation water pump ONLY
• Push in Valve Cover Breather not included. BluePrint Engines recommends PN B6AZ-6766-B or similar
• Click Here for BluePrint Engines Ford Serpentine System with PS and AC
• Click Here for BluePrint Engines Ford Serpentine System with PS
