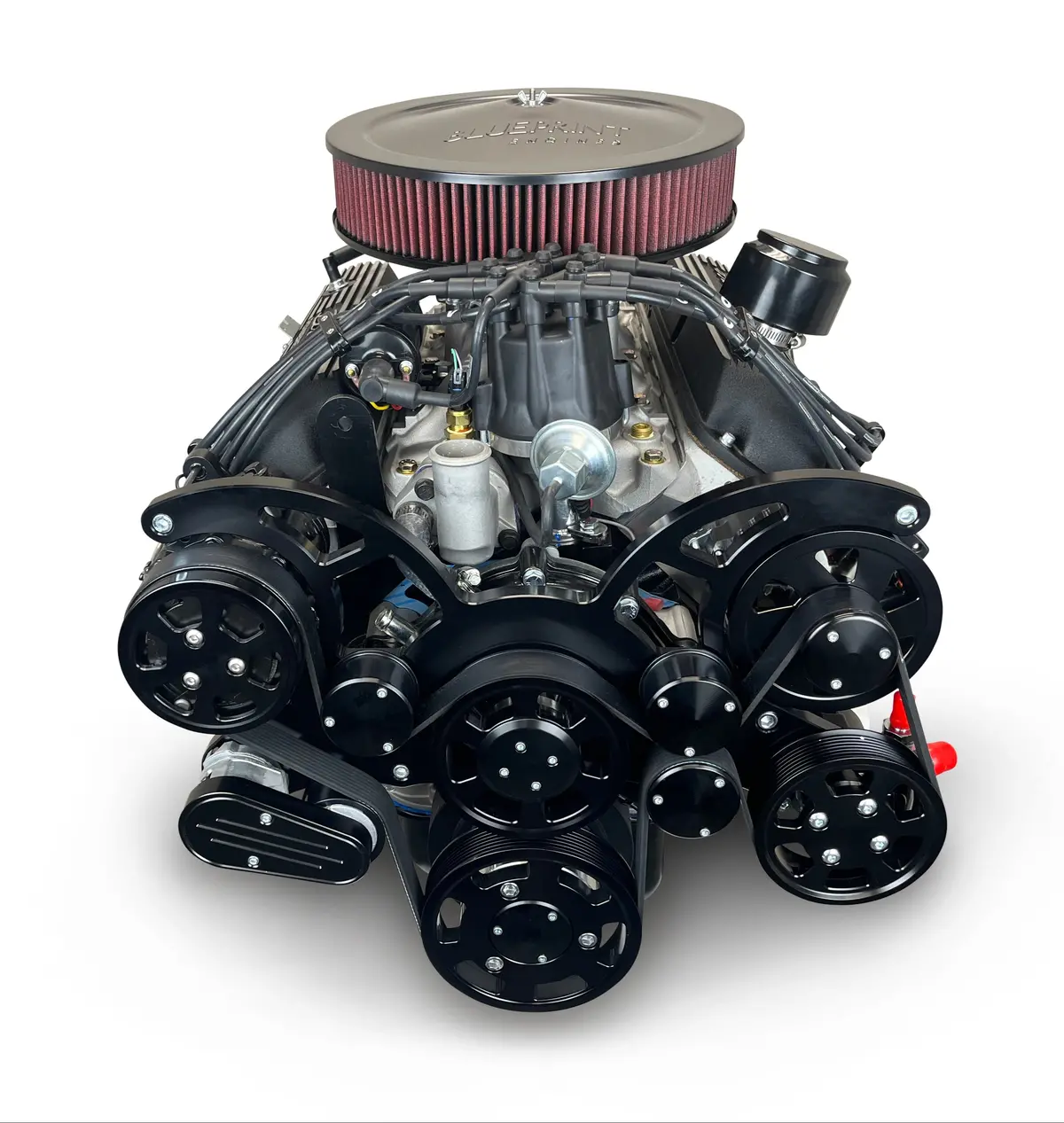

Ford 302ci Small Block Engine with 4R70W Automatic – 365 HP, Bronco Edition Builder Series, Black Pulleys, Fuel Injected

Description

Description:

• Horsepower & Torque: 365 Horsepower / 365 ft. lbs. Torque
• Compression Ratio: 9.5:1
• Aluminum Heads
• Hydraulic Roller Cam
• Hypereutectic Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• 4-Bolt Main
• 4.000″ Bore
• 1-Piece Rear Main Seal

Rotating Assembly:

• Cast Crankshaft
• 3.000″ Stroke
• OEM Type 5.090″ Connecting Rods
• Hypereutectic Pistons
• 50oz External Balance

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads – HP9009
• 60cc Chamber
• 2.02″ Intake / 1.60″ Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Cam Specs:

• Cam Type: Roller
• .533 Intake / .544 Exhaust Lift
• 215 Intake / 220 Exhaust Duration
• @.050-114 Degree Lobe Separation

Ignition Timing:

• 34 Degrees Total at 3500 RPM

Also Includes:

• Dual Plane, Satin Aluminum Intake Manifold
• Holley Sniper 2 EFI System – BPP550-510-3XX
• EFI Fuel Pump Kit – BPP5267
• Spark Plugs and Wires
• Distributor
• Valve Covers
• Dual/Rear Sump Oil Pan
• Black Front Accessory Drive – BPP302FDACPS4BK
  • Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

Assembled with Complete 4R70W 4WD Ready – Automatic Transmission Package:

• Includes Electronic Transmission Controller
• Transmission Built to 650 HP
• 2200-2600 Stall Torque Converter
• Flex Plate
• Starter
• TPS Breakout Harness Included for Integration with Transmission Controller
• 4 Speed, Overdrive transmission w/Lockup
• Specifically Prepped for Dana 20 Transfer Case (1966-1976). Transfer case is NOT included.
• GEAR RATIOS
  • First: 2.84 :1
  • Second: 1.55 :1
  • Third: 1.00 :1
  • Overdrive: 0.70 :1
  • Reverse: 2.32 :1

Notes:

• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• Note that 4R70W transmission may require modifications/replacement of driveshaft, transmission mount, exhaust routing, etc.
• This engine can be used on all vehicles that were manufactured before emissions control regulations were imposed. These vehicles are considered “uncontrolled vehicles.”
• Uncontrolled Vehicles are Defined as:
  • 1965 and older U.S. manufactured California Certified vehicles
  • 1967 and older U.S. manufactured Federally Certified vehicles
  • 1967 and older Foreign manufactured vehicles

• Package Ships assembled as pictured.
