Ford 347ci Small Block Engine with TKX Manual Transmission – 415 HP, Mustang Edition Builder Series, Black Pulleys, Fuel Injected

Description

Description:

• Horsepower & Torque: 415 Horsepower / 415 ft. lbs. Torque
• Compression Ratio: 10.0:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Iron Crank
• Forged Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4.000″ Bore
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Rotating Assembly:

• New BluePrint Cast Iron Crankshaft
• 3.400″ Stroke
• Forged I-Beam 5.400″ Connecting Rods
• Forged Pistons
• 28oz Externally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads – HP9009
• 60cc Chamber
• 2.02″ Intake / 1.60″ Exhaust Valves
• 190cc Intake / 65cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .543 Intake / .554 Exhaust Lift
• 218 Intake / 226 Exhaust Duration
• @.050-112 Degree Lobe Separation

Ignition Timing:

• 34 Degrees Total at 3500 RPM

Also Includes:

• Dual Plane, Satin Aluminum Intake Manifold
• Holley Sniper 2 EFI System – BPP550-510-3XX
• EFI Fuel Pump Kit – BPP5267
• Pro Billet Distributor
• Mustang Style Valve covers *Mustang scripted valve cover may be different than pictured based on availability*
• 7 Quart Oil Pan
• Thermostat and Thermostat Housing

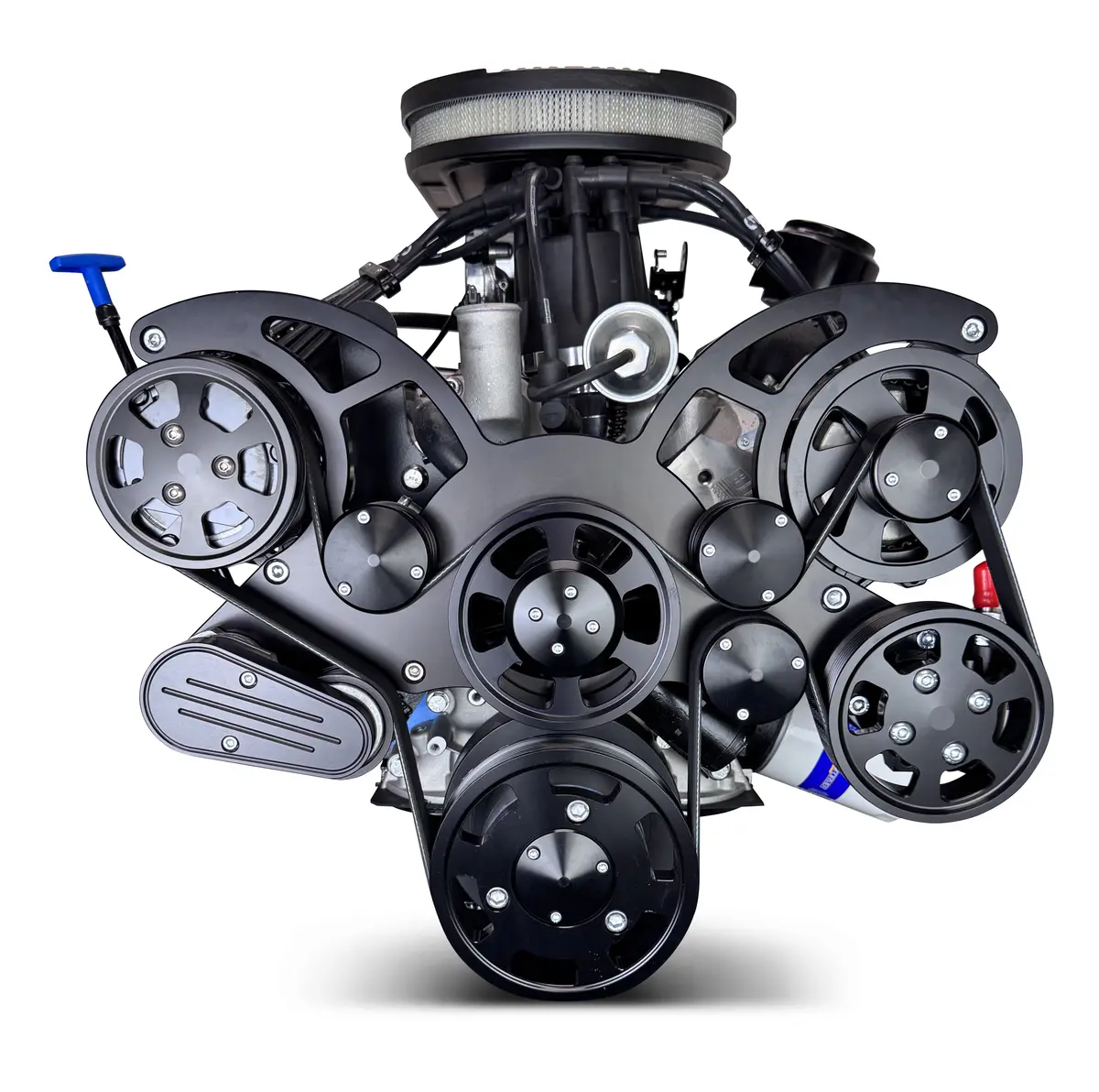

• Black Front Accessory Drive – BPP302FDACPS4BK
  • Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

Assembled with Complete TKX Transmission Package:

• Mcleod Super Street Pro single disk clutch
• Hydraulic throw out bearing
• Aluminum Bell housing
• Billet flywheel
• Engine guard
• Starter
• First Gear Ratio: 2.87:1
• Second Gear Ratio: 1.89:1
• Third Gear Ratio: 1.28:1
• Fourth Gear Ratio: 1.00:1
• Fifth Gear Ratio: 0.81:1

Notes:

• Package Ships assembled as pictured.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
