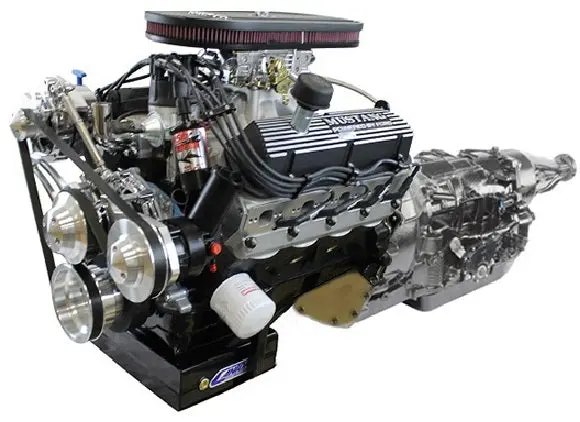

Ford Small-Block 347ci Engine + 4R70W Automatic Transmission – 415 HP, Mustang Edition, Polished Pulleys, Carbureted

Description

Description:

• Horsepower & Torque: 415 Horsepower / 415 ft. lbs. Torque
• Compression Ratio: 10.0:1
• Aluminum Heads
• Cast Crank
• Hydraulic Roller Cam

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4.000″ Bore
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Rotating Assembly:

• Cast Crank
• 3.400″ Stroke
• Forged 5.400″ Connecting Rods
• Forged Pistons
• 28oz Externally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads – HP9009
• 60cc Chamber
• 2.02″ Intake / 1.60″ Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Cam Specs:

• Hydraulic Roller Cam
• .543 Intake / .554 Exhaust Lift
• 218 Intake / 226 Exhaust Duration
• @.050-112 Degree Lobe Separation

Ignition Timing:

• 34 Degrees Total at 3500 RPM

Also Includes:

• Holley 600 CFM Street Warrior Carburetor – BPP080457SA
• Mustang Style Valve covers *Mustang scripted valve cover may be different than pictured based on availability*
• Dual Plane, Satin Aluminum Intake Manifold
• Thermostat and Thermostat Housing
• Pro Billet Distributor
• 7 Quart Oil Pan
• Electric Fuel Pump Black
• Polished Front Accessory Drive – BPP302FDACPS4
  • Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

Assembled with Complete 4R70W Automatic Transmission Package:

• Includes Electronic Transmission Controller
• Transmission Built to 650 HP
• 2200-2600 Stall Torque Converter
• Flex Plate
• Starter
• 4 Speed, Overdrive Transmission w/Lockup
• GEAR RATIOS
• First: 2.84 :1
• Second: 1.55 :1
• Third: 1.00 :1
• Overdrive: 0.70 :1
• Reverse: 2.32 :1

Notes:

• Does not include TPS, as varies with carb or EFI type.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• Note that 4R70W transmission may require modifications/replacement of driveshaft, transmission mount, exhaust routing, etc.
• Package Ships assembled as pictured.
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
