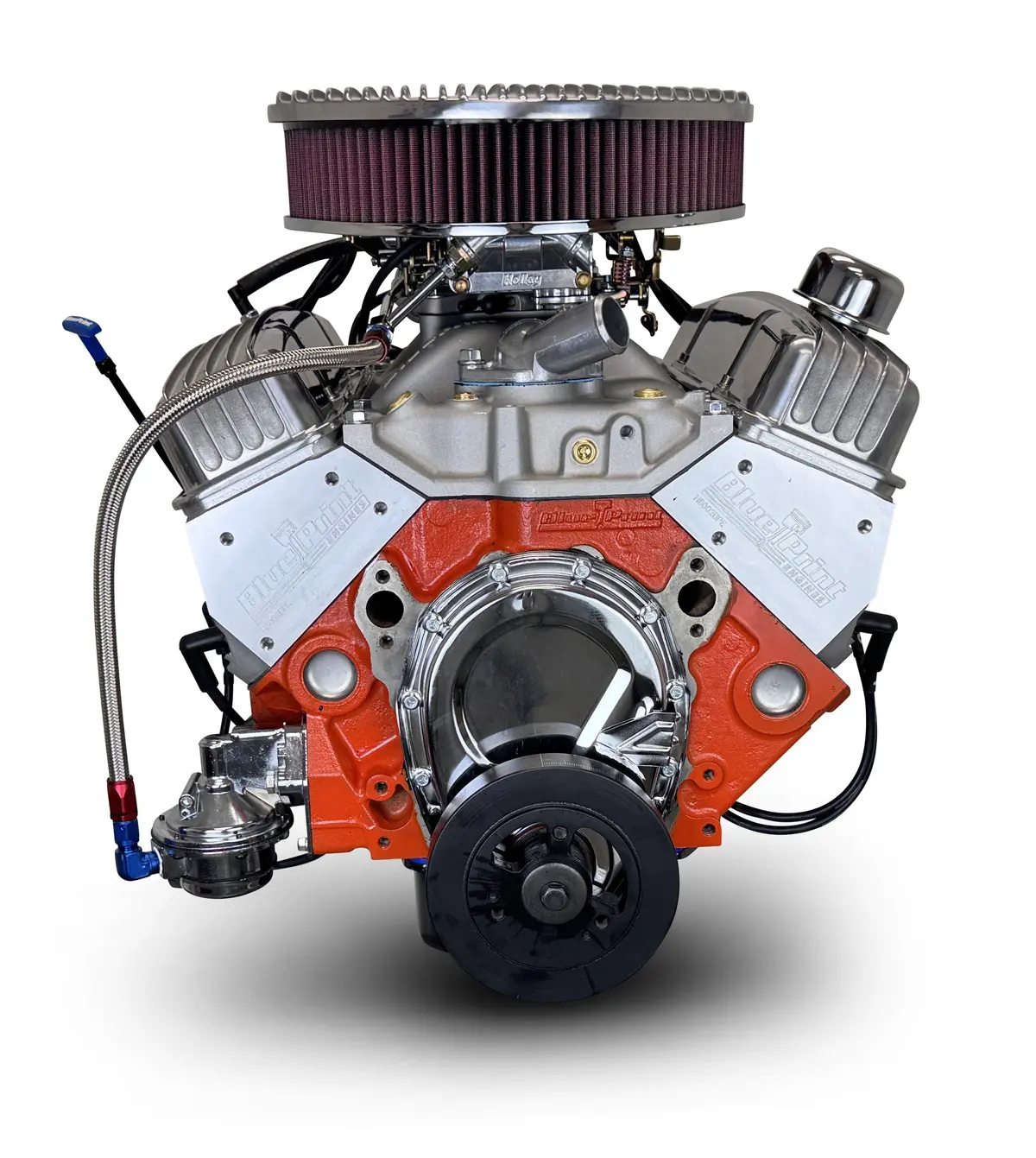

GM 327ci Small Block Engine – 350HP Carbureted Deluxe-Dressed Crate Motor

Description

Overview:

The Blueprint Engines 327ci crate engine combines classic muscle with modern performance, dyno-tested at 350 Horsepower / 350 ft. lbs. Torque, and features a genuine Holley Sniper 2 EFI system. Housed in a one-piece rear main seal BluePrint Engines High Strength Cast Iron 4-bolt main Block with a 4.000″ bore and 3.250″ Stroke, it features high-quality internals like a .495 Intake / .502 Exhaust Lift and 220 Intake / 224 Exhaust Duration @ .050-114° LSA, hypereutectic pistons, forged crank, forged 5.700″ Connecting Rods, and Blueprint’s aluminum heads sporting 64cc chambers and raised ports.

Description:

• Horsepower and Torque: 350 Horsepower / 350 ft. lbs. Torque
• Compression Ratio: 9.4:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Hypereutectic Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.000″ Bore

Rotating Assembly:

• BluePrint Forged Crankshaft
• 3.250″ Stroke
• Hypereutectic Pistons
• Forged 5.700″ Connecting Rods w/ 150,000 PSI Bolts
• Internally Balanced Front – Externally Balanced Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads – H8002K
• 64cc Chamber
• 2.02″ Intake / 1.60″ Exhaust Valves
• 195cc Intake / 75cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .495 Intake / .502 Exhaust Lift
• 220 Intake / 224 Exhaust Duration
• @ .050-114 Degree Lobe Separation

Ignition Timing:

• 32 – 34 Degrees Total at 3500 RPM

Also Includes:

• Holley Brawler 670cfm Vacuum Secondary Carburetor w/ Electric Choke – BPP67256
• Under Header Spark Plug Wires (Perfect for Rams Horn exhaust manifolds)
• BluePrint Tach Drive Pro Billet Ready Run Distributor – BPP3503TDBK
• Aluminum Intake Manifold – BPP350VINT
• Thermostat Housing – BPP10108470
• Mechanical Fuel Pump – BPP61073
• Premium Vintage Valve Covers
• Premium Vintage Air Cleaner
• 6.75-inch Harmonic Balancer
• Thermostat – BPP180TS
• Timing Cover
• Spark Plugs
• Oil Pan

Notes:

• Not for use in pollution-controlled vehicles.
