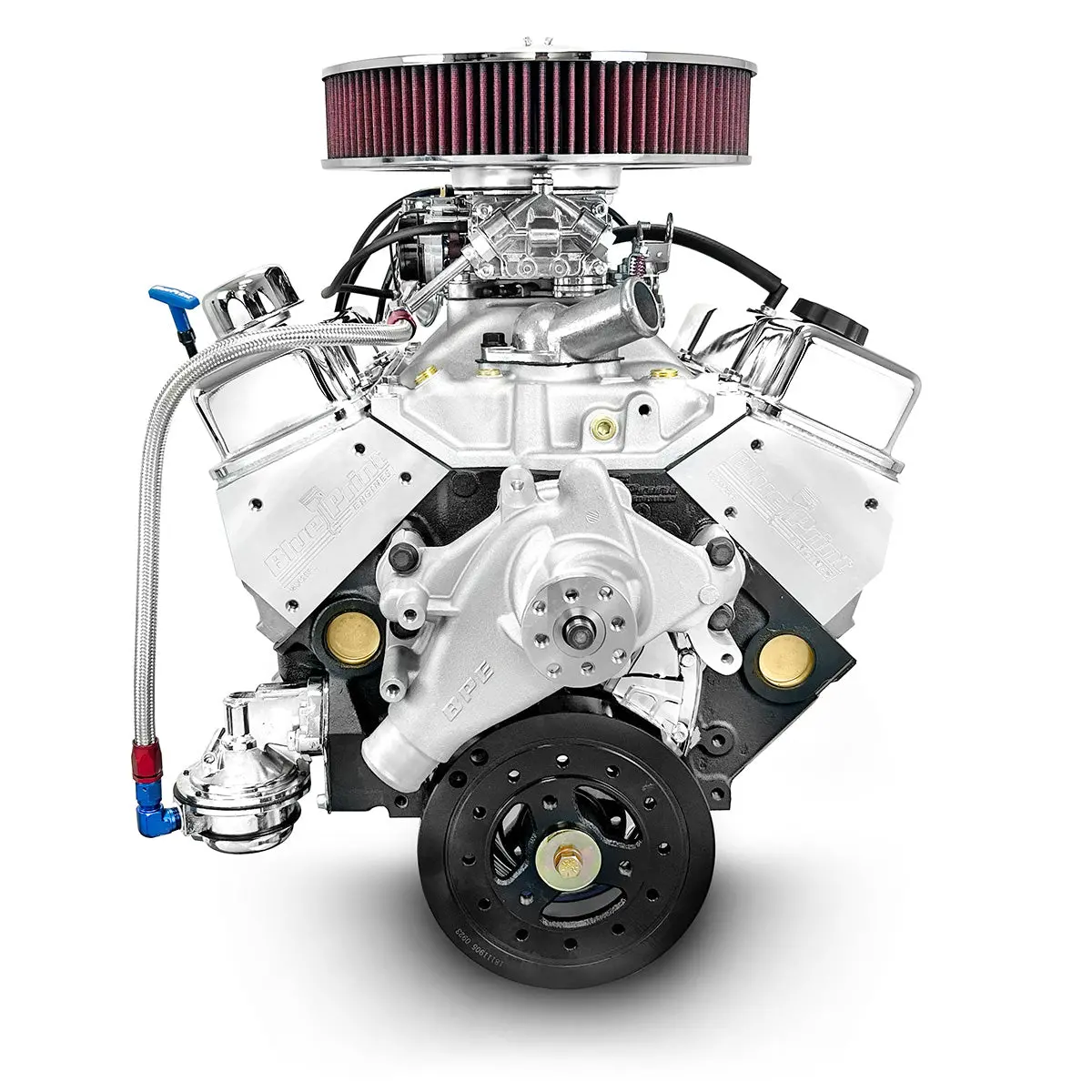

GM 350ci Small Block Engine – 390HP Carbureted Deluxe-Dressed Crate Motor

Description

Description:

• Horsepower & Torque: 390 Horsepower / 410 FT. LBS. Torque
• Compression Ratio: 9.2:1
• Aluminum Heads
• Hydraulic Roller Cam
• Cast Crankshaft
• Hypereutectic Pistons

Block:

• NEW BluePrint Cast Iron Block
• Manufactured and Machined in the USA!
• 4-Bolt Main
• 4.000″ Bore
• 1-Piece Rear Main Seal
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• Drilled and Tapped for Clutch Linkage

Rotating Assembly:

• Cast Crankshaft
• 3.480″ Stroke
• Forged 5.700″ Connecting Rods
• Hypereutectic Pistons
• Internally Balanced Front – Externally Balanced Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads – H8002K
• 64cc Chamber
• 2.02″ Intake / 1.60″ Exhaust Valves
• 195cc Intake / 75cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .495 Intake / .502 Exhaust Lift
• 220 Intake / 224 Exhaust Duration
• @ .050-114 Degree Lobe Separation

Ignition Timing:

• 32 Degrees Total at 3500 RPM

Also Includes:

• Holley 670 CFM Brawler Carburetor – BPP67256670
• Standard Rotation Long Style Water Pump
• Thermostat and Thermostat Housing
• Valve Covers
• Harmonic Balancer
• Spark Plugs
• Spark Plug Wires
• Mechanical Fuel Pump – BPP61073
• Rear Sump Oil Pan
• Timing Cover
• Aluminum Intake
• HEI Distributor

Recommended Break in Oil: BPP710 (Click Here)

Recommended Service Oil: BPP10W30 (Click Here)

Recommended Oil Filter: BPP51061 (Click Here)

Notes:

• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
