GM Small Block 383ci Truck Engine with 700R4 Automatic Transmission – 4WD-Ready, 405 HP, Builder Series, Polished Pulley Kit, Carbureted

Description

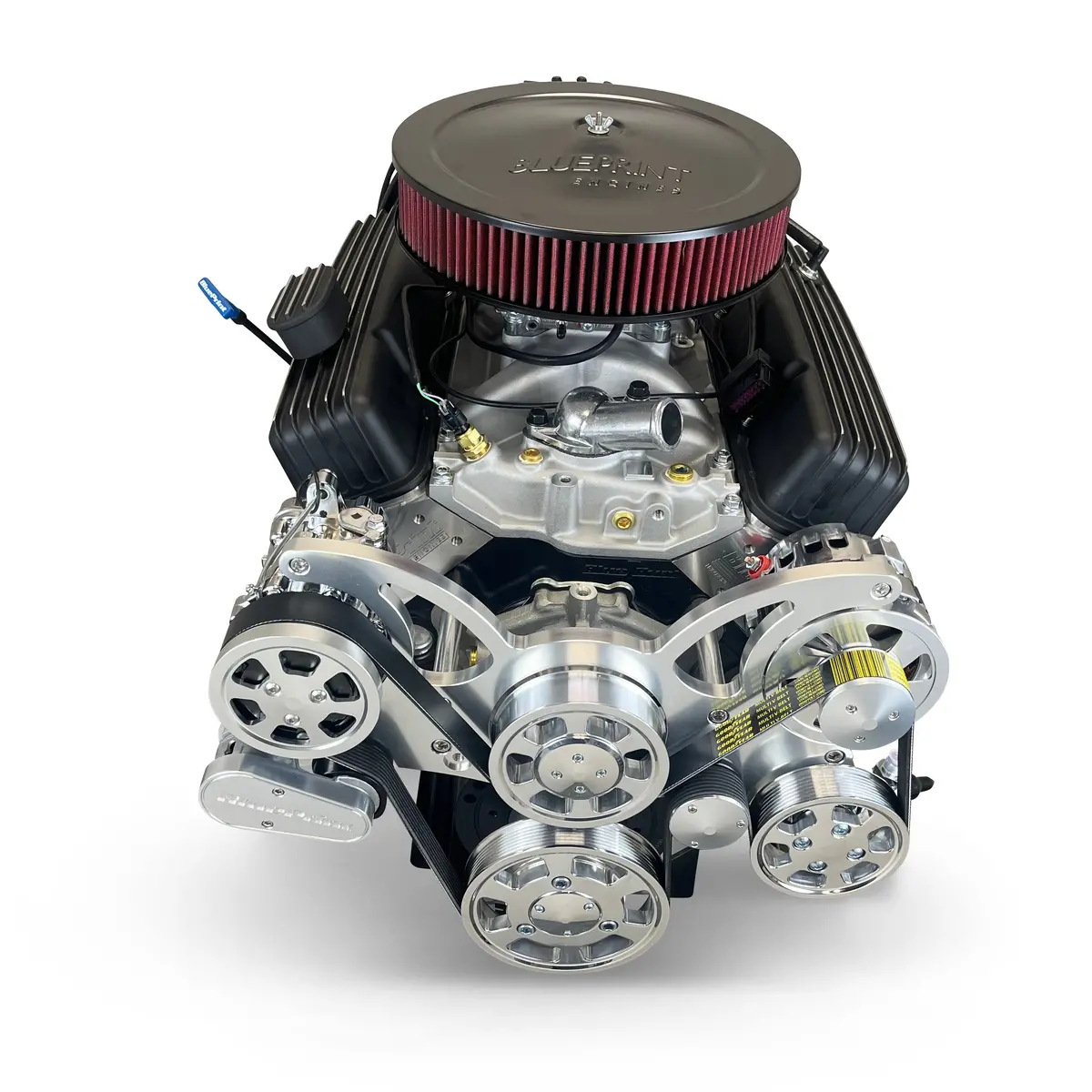

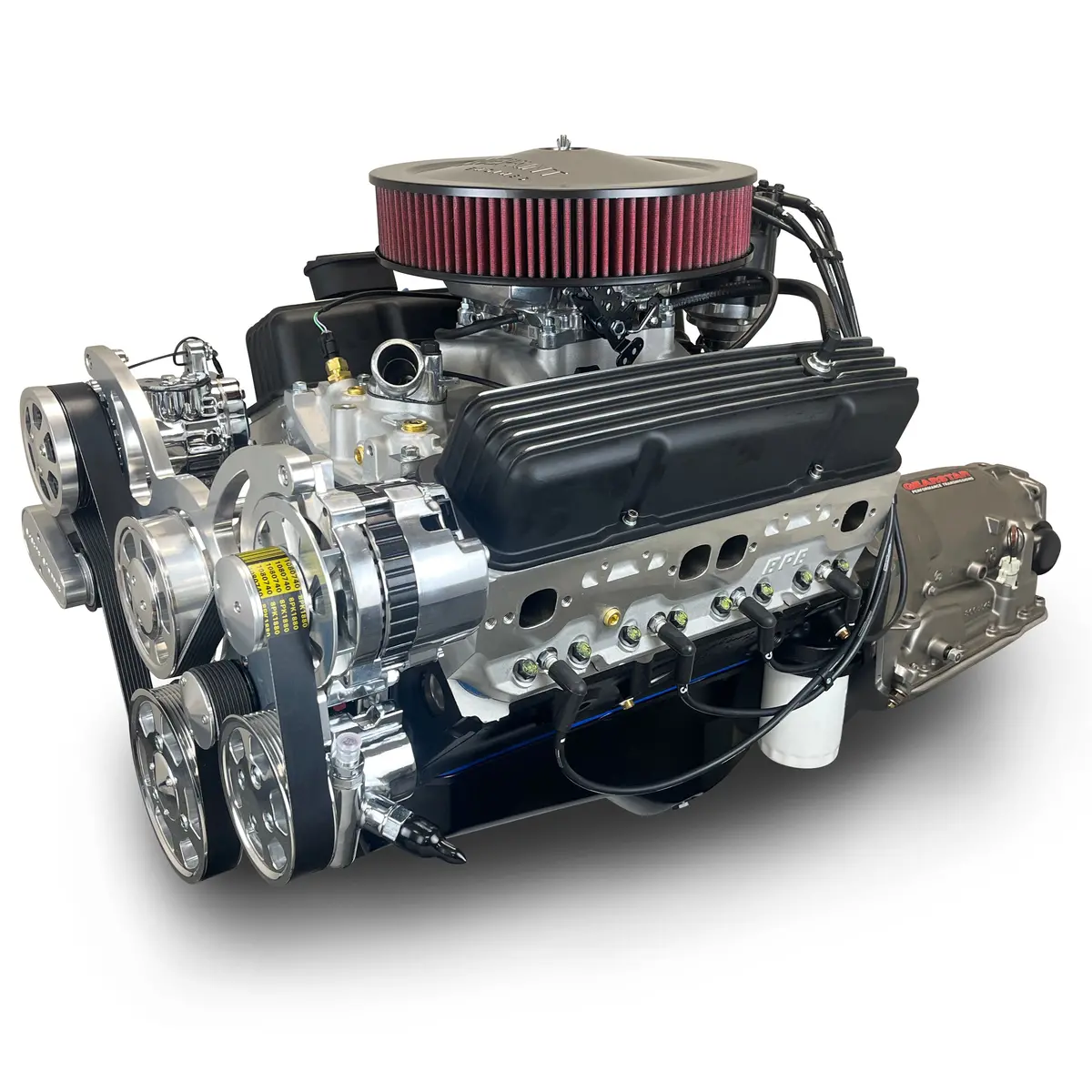

**This package features a carbureted engine and automatic transmission. EFI and manual transmission pictured as rep image.

Description:

• Horsepower & Torque: 405 Horsepower / 458 FT. LBS. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Cast Crank
• BluePrint Engines Hypereutectic Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.000″ Bore

Rotating Assembly:

• Cast Crankshaft
• 3.750″ Stroke
• OEM Type 5.700″ Connecting Rods w/ 150,000 PSI Bolts
• Hypereutectic Pistons
• Externally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads – H8002K
• 64cc Chamber
• 2.02″ Intake / 1.60″ Exhaust Valves
• 195cc Intake / 75cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .495 Intake / .502 Exhaust Lift
• 220 Intake / 224 Exhaust Duration
• @ .050-114 Degree Lobe Separation

Also Includes:

• Intake Manifold Dual Plane, Satin Aluminum – BPP350VINT
• Holley 750cfm Classic Carburetor – BPP080508S
• Pro Series Ready Run Distributor – BPP3503BK
• Thermostat Housing – BPP10108470
• EFI Fuel Pump Kit – BPP5267
• Air Cleaner – BPP4304BK
• Thermostat – BPP180TS
• Spark Plugs – BPP7938
• Plug Wire Separators
• Spark Plug Wires
• Timing Cover
• Valve Covers
• Oil Filter
• Oil Pan
• Polished Front Accessory Drive – BPP350FDACPS4
  • Reverse Rotation Short Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Style Air Conditioning Compressor

Assembled with Complete Transfer Case Ready 700r4 Automatic Transmission Package:

• 700R4 Complete Package. Features 4wd 27 Spline Stub Shaft, and Transfer Case Ready, 4wd Case.
• 2200-2400 Stall Torque Converter
• Flex Plate
• Starter

Notes:

• This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• Package Ships assembled as pictured.
• Due to numerous tire/rear gear combinations, this transmission does NOT ship with a speedometer gear or sender housing.
• Does not include a 2wd tail housing. Will have extended 4wd output shaft, designed for transfer case to bolt directly to transmission case.
• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
