Description

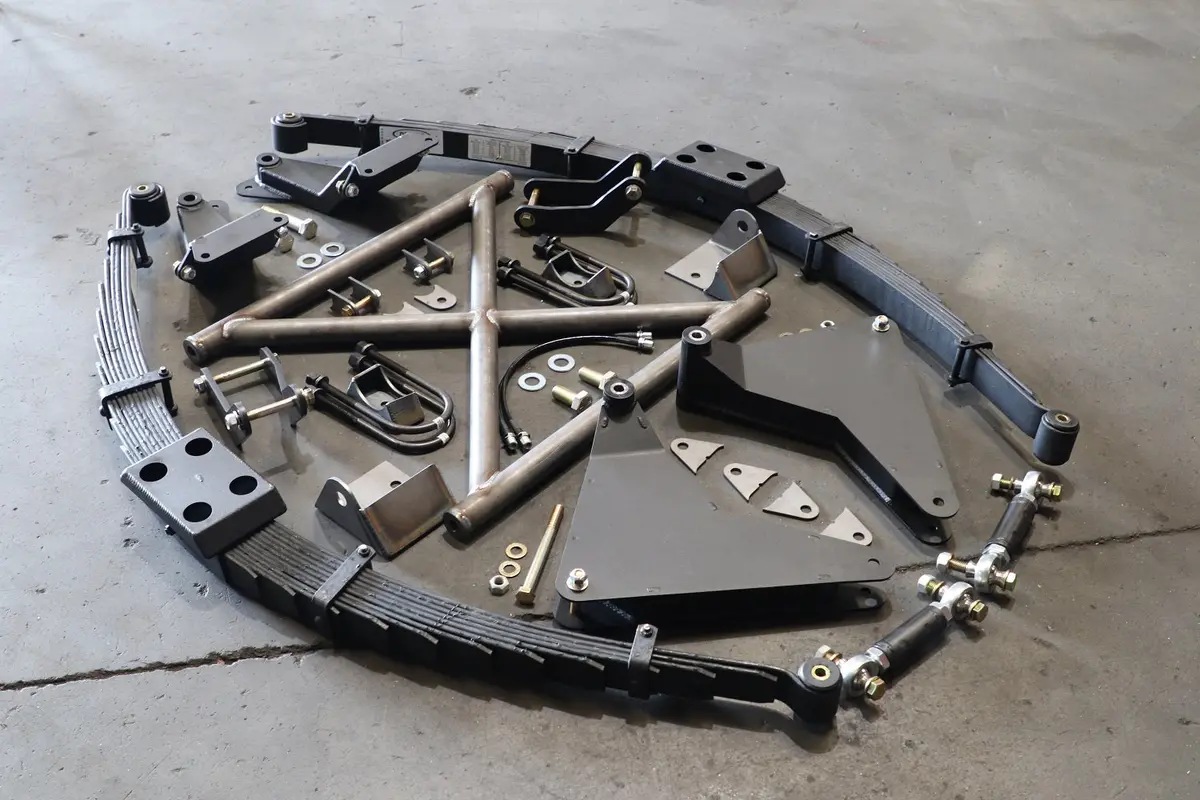

Introducing The 07+ Tundra Cantilever Rear Suspension Kit. This Kit Is Designed As A VERY Fabricator Friendly Package And Should Be Installed By A Reputable Fab Shop Or An Individual With Proficient Fabrication Skills.
INCLUDES
- Cantilever Tube Cradle Structure
- Cantilever Arm Assemblies
- Axle Tabs
- Shock Tabs
- Long Travel Shackles
- Spring Under Perches
- Spring Plates
- Extended Brake Lines
- Grade 8 Hardware Throughout
ADD ONS
- I96 or I96HD Deaver Spring Pack – Purpose Built Spring Packs From Deaver Springs Inc. (For Individuals Towing Or Carrying Loads Over 400lbs We Recommend The I96HD Pack)
- Bumpstop Mounts – These Bumpstop Mounts Are Designed Around 2.0 x 2″ Stroke King Bumpstops And Have Both A Frame Mount With Integrated Bumpstop Cans And An Axle Mounted Strike Pad. Includes 2.0 x 2″ King Bumpstops
- Coating Options For Cantilever Arms, Cradle, And Cantilever Links. All Other Components Ship Raw
REQUIRES
- Welding – Many Components In This System Must Be Welded To InstaIl
- 12″ Stroke 3.0″ Bypasses Or 3.0″ Smoothie Shocks
- Possible Extension Of Factory ABS Lines
- Limit Straps
IMPORTANT NOTES
- WHILE WEBSTORE MAY DISPLAY AN IN STOCK STATUS, WEBSTORE DOES NOT TRACK KIT INVENTORY IN REAL TIME – PLEASE CONTACT OUR SALES TEAM FOR CURRENT LEAD TIME ON KIT COMPONENTS
- 15-16″ Of Strapped Travel Is Recommended (Limit Straps Are Available In Our Builders Components Section of The Website)
- Driveshaft Modifications MIGHT Be Necessary When Running This Package Depending On Desired Pinion Angle (We Did Not Have To Modify Driveshaft On In House Builds)
- TOWING: Towing A Light Trailer Can Be Done, But Excess Body Roll With The Softer Spring Packs May Hinder Towing Control And May Be Done At Your Own Risk
- Factory Axle: The Factory Axle Can Be Retained For This Kit And Has Been Used As The Basis For The Included Mounts – Custom Housings May Require Modification To The Supplied Mounts
- Bypasses Are Custom Ordered And Not Always Stocked Per Application. Please Email Our Sales Team For Current Lead Time On Shock Packages
- Cantilever Links: Use 7/8″-14 Rod Ends – Replacement Rod Ends Can Be Purchased Through Our Online Store Under Builders Components
