Pratt & Whitney R-1535 Radial Engine Overhaul Primer for Mechanics

Description

Pratt & Whitney R-1535 Aircraft Engine Overhaul Mechanic Preliminary Instruction Manual.

January 1942.

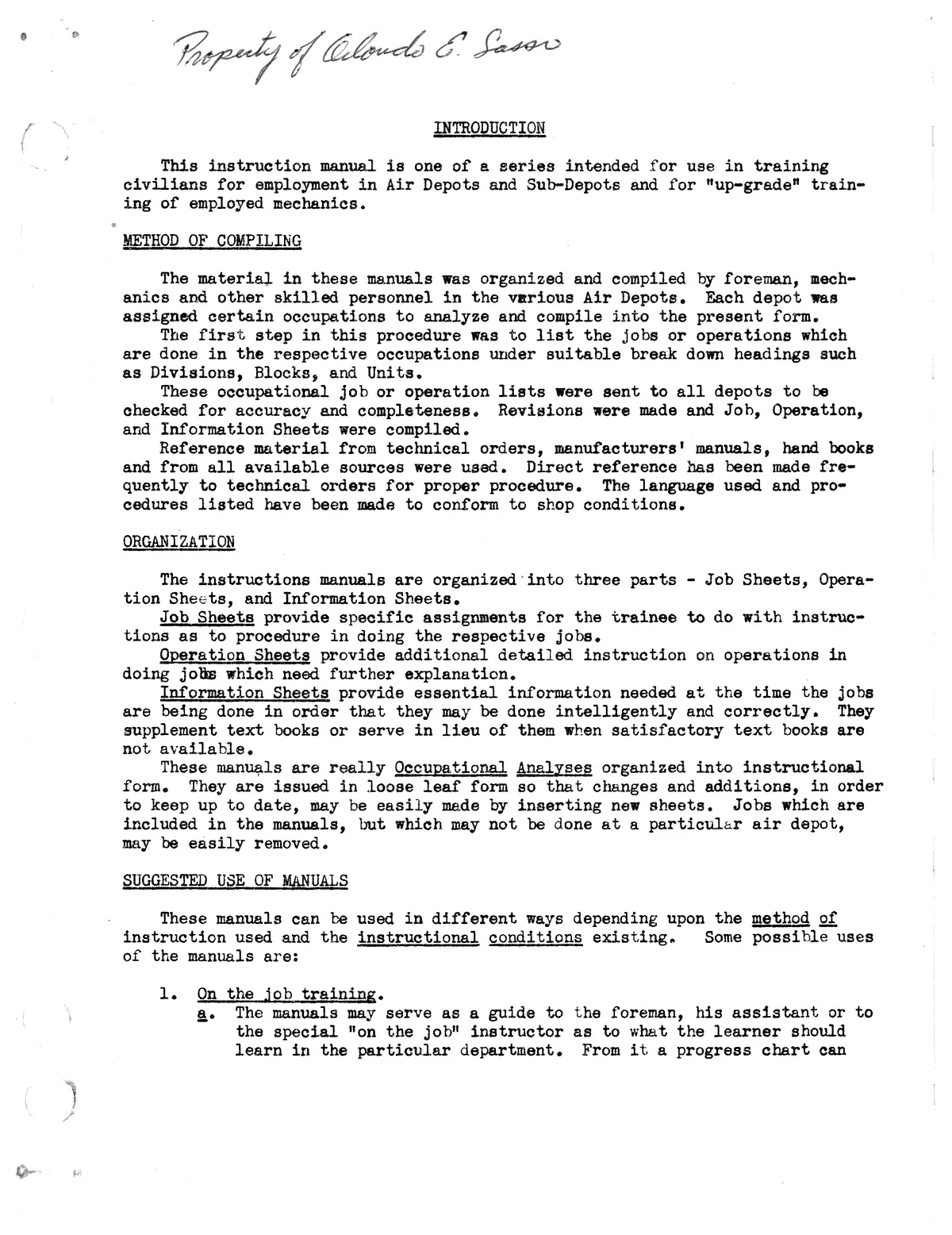

This instruction manual is one of a series intended for use in training civilians for employment in Air Depots and Sub-Depots and for “up-grade” training of employed mechanics.

The instructions manuals are organized into three parts:

Job Sheets: Disassembly, Cleaning, Inspection, Assembly, Accessories, Crankshaft and Connecting Rods, Timing Magneto Timing, Etc.

Operation Sheets

Information Sheets
