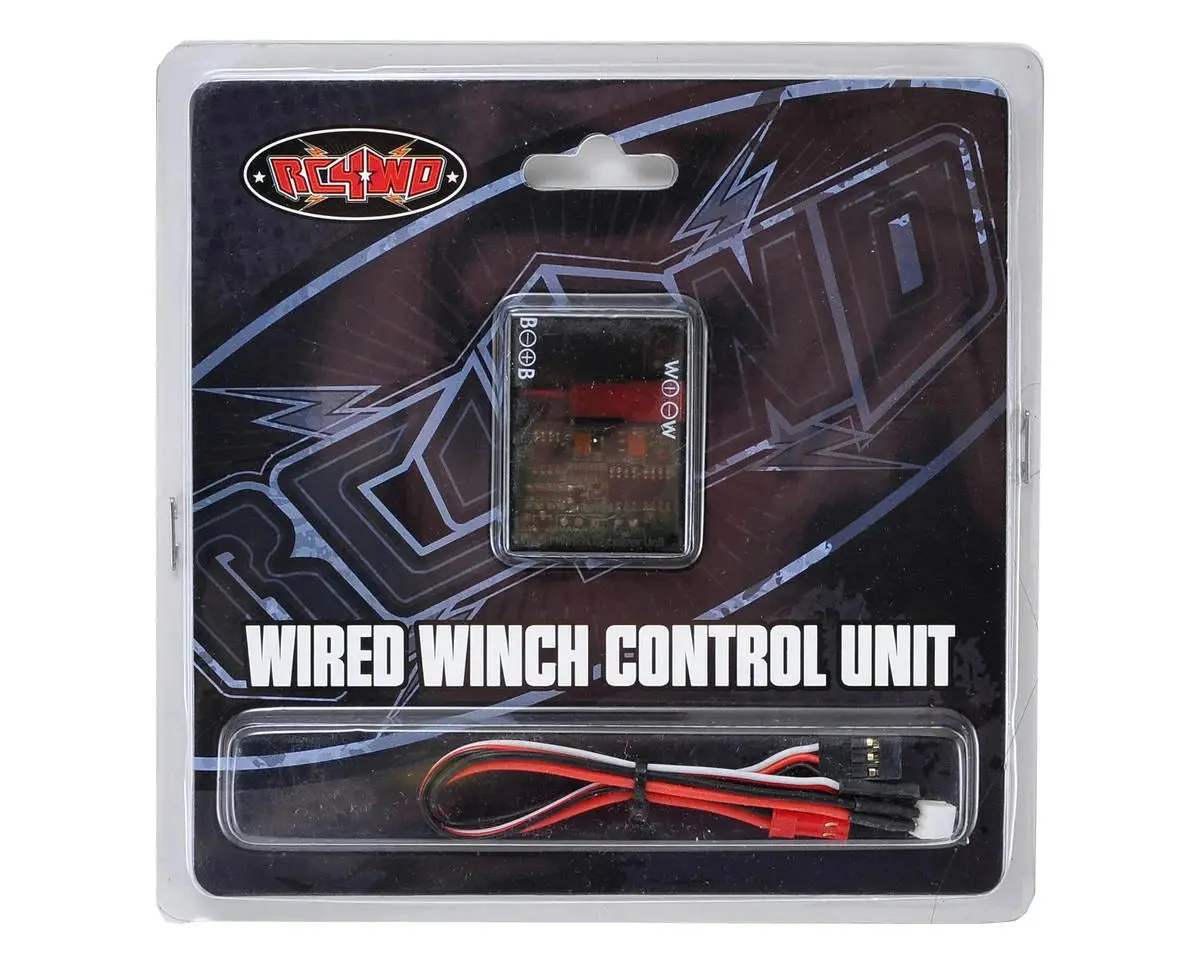

RC4WD Wired Miniature-Scale Winch Controller

Description

This is an optional RC4WD Wired Winch Control Unit. This wired Winch Control Unit allows functional operation from your radio and receiver. This will allow you to control a winch with your remotes third channel.

Features:

• Small Compact Size
• 2 and 3 cell Lipo Compatible
• Operating Voltage 6V to 11.1V
• Requires 3 position Third Channel
• Easy Plug and Play
• Instruction Included

Specifications:

Length: 1.6in (41mm)
Width: 1.2in (31mm)
Height: 0.39in (10mm)
Weight: 0.35oz (10g)
Wire Length: 6in (150mm)
Wire Weight: 0.14oz (4g)

Includes:

• (1) Wired Control Unit
• (1) 6″ Receiver/Receiver Power Wire
• (1) 6″ Receiver/Winch Control Wire

Notes:

• You will need a radio with a third channel to operate this controller.
• Your third channel needs to be a three position switch (on/off/on).
• If your radio does not have a three position switch, you can purchase a wireless controller unit (RC4ZS1092).
• This product is not waterproof. You may be able to waterproof on your own, but this will void the manufactures warranty.
• If for any reason you cut the wires on the control box, this will void the warranty.

MPN: RC4ZS1089
