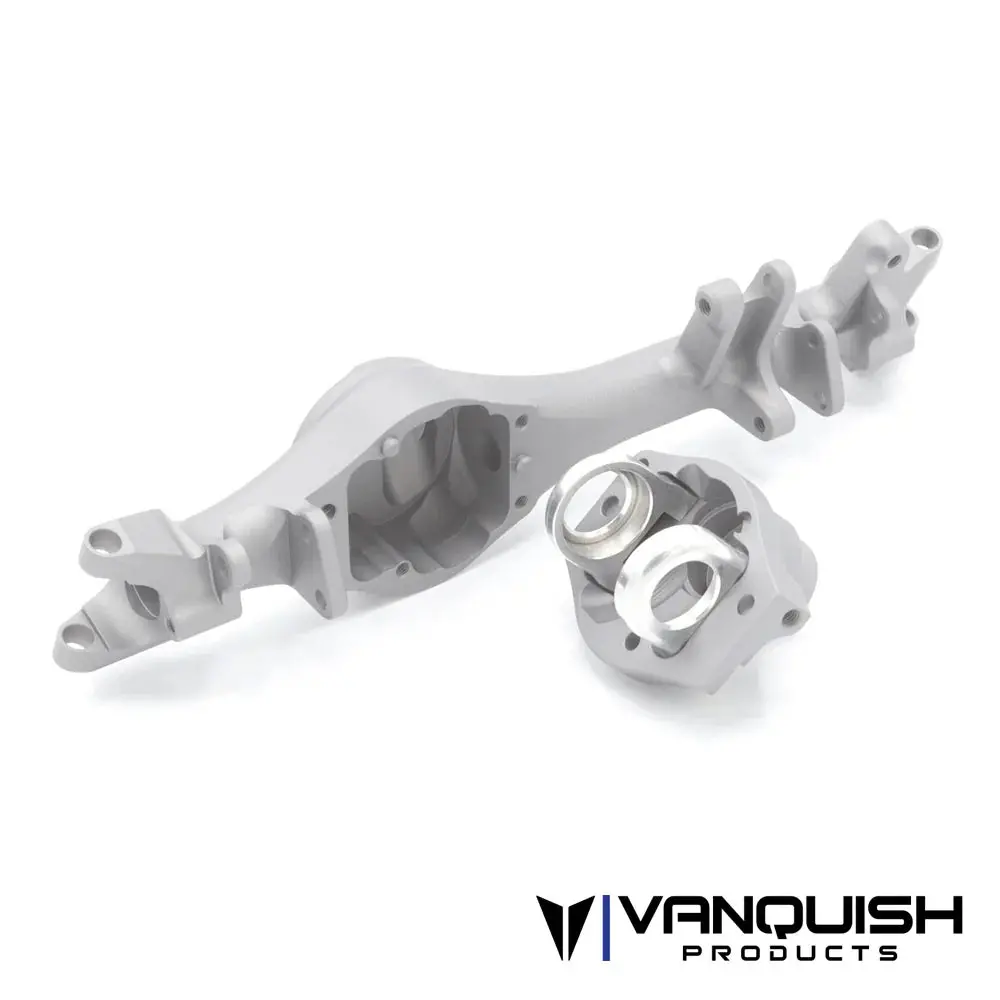

Vanquish F10T Aluminum Front Axle Housing – Silver Finish

Description

The Vanquish Products F10T Aluminum Front Axle Housing offers another high-quality scale axle option. Utilizing the stout Vanquish AR44 gear sets and spools the F10T axle housings are an easy upgrade for VS4-10 kits equipped with straight axles such as the Origin, Pro, and Phoenix (Straight Axle version). Adding to the scale realism is the removable third member with one-piece retainers. This creates a strong and durable housing capable of taking some serious abuse. The F10T features integrated inner c-hubs, creating an unmatched scale look, not to mention they incorporate easily replaceable chromoly threaded inserts for the knuckle kingpin screws if the threads get damaged. Using high-quality materials, thorough engineering, and next-level attention to detail is exactly what you would expect from Vanquish Products, and the F10T axle housings do not disappoint.

NOTE:

• These axles are for use with a Vanquish Products VS4-10 Chassis. Clearances of the offset pumpkin require additional clearances compared to centered housings and will not function properly under many other chassis designs.
• Not for use with Vanquish Products Brass Pivot Balls (.300″ width)
• Due to the nature of the AR44 gear design, proper shimming of the pinion gear may be required for optimal results.

Features:

• Machined in the USA
• Made from high quality domestic produced aluminum
• Designed for use with Chromoly offset VDI universal axle shafts
• Comes with One Piece Bearing Retainers
• Integrated C-hub design allows for a more scale appearance
• Threaded Chromoly Steel C-hub Insert provides stronger threads that are also replaceable
• Double shear shock mounts for S8E offset pivot balls allowing for more shock tuning adjustment
• Integrated Panhard mount
• Upper link mount built into the housing for added scale appearance and strength

Includes:

• (1) F10T Front Offset Housing (Silver)
• (2) Bearing Retainers
• (1) F10T Third Member
• (4) Threaded Inserts
• Axle Housing hardware
• Instructions

Needed to Complete:

• Hexes
• Hex Pins
• Bearings
• Kingpin
• Knuckles
• Ring and Pinion or Locker
• VDI universal axle shafts (short and long side) (INCIRC00181)
• (2) 7x14x3.5mm
• (1) 5x14x5mm
• (3) 5x11x4mm

Recommended Completion Items:

• Vanquish VS4-10 Chassis Kit (VPS10130).
• VDI universal axle shafts (short and long side) (INCIRC00181).
• Incision S8E 90mm Shocks (Offset pivot ball at shock mounting location) (INCIRC00501).
• Incision Rod Ends and Pivot Balls at link locations (.280″ width pivot balls).
• Vanquish Products 6-Hole AR44 Gear set (VPS08330 or VPS08331).
• Vanquish Products 6-hole AR44 Spool (VPS08070).

MPN: VPS08631
