Description

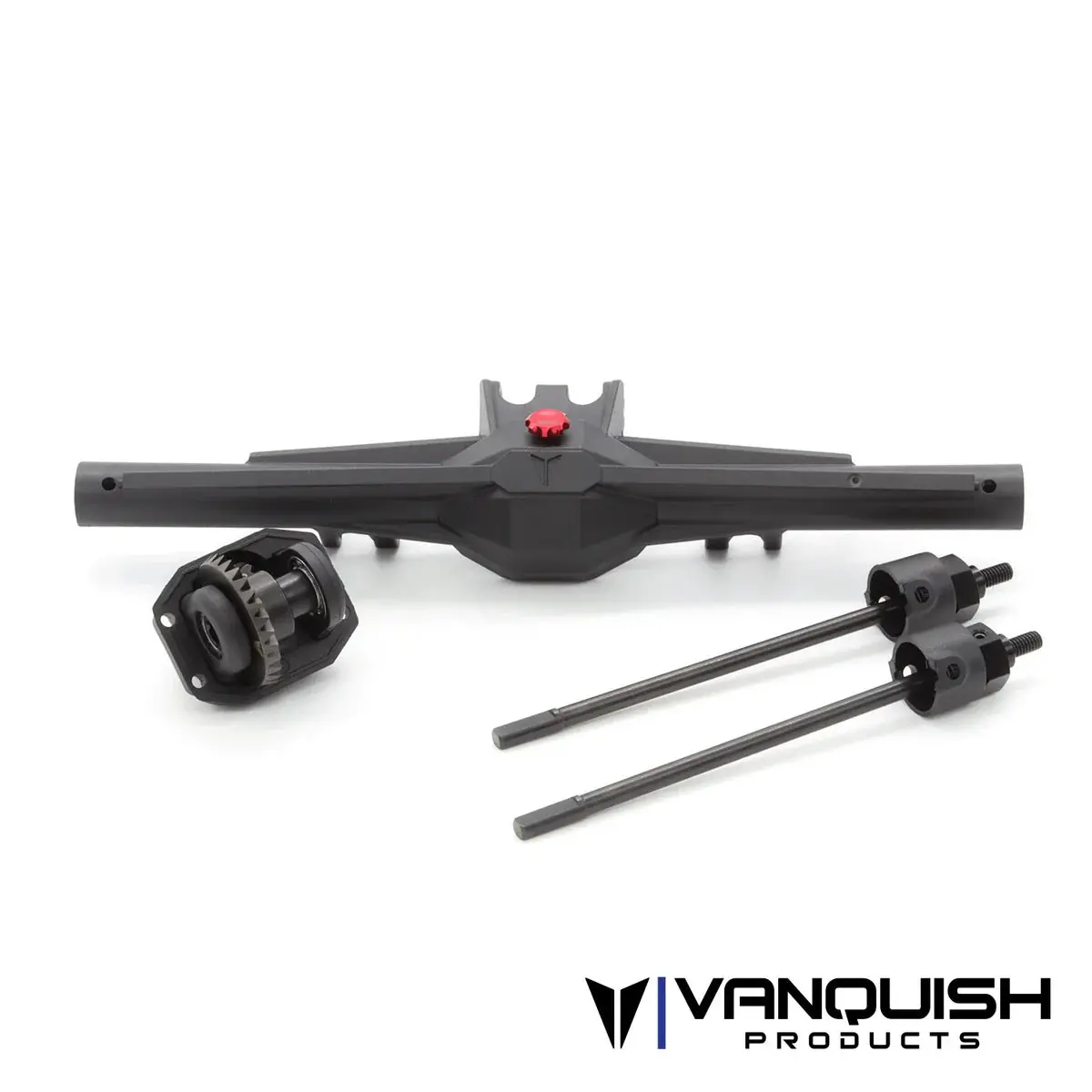

The H10 axle kit offers a complete axle package that brings performance and style to your build. The plastic molded H10 rear axle features an ultra rigid design that is made to run 4-link suspension with 0.600″ (15.2mm) of added width compared to the F10 Straight axle. The H10 Rear straight axle set includes a removable 3rd member, one piece bearing retainers and two upper link positions built into the housing.
H10 Rear Axle Set:
- 206.5mm Hex Face Width (8.13″)
- Molded Plastic Axle housing
- 2 Upper link mount tuning positions
- High-Pinion Hypoid Machined Axle Gears 30/8 (VPS08330)
- 6-Bolt Ring Gear and Spool
- One-Piece Molded Bearing Retainers
- Adjustable Lower Shock Mounting Position (S8E Offset Pivot Ball IRC00509)
- Chromoly axle shafts
- Scale removable third member
- Machined aluminum red anodized rear fill cap with molded install tool
Note:
- Optional lower ratio ring and pinion (8/33) available VPS08331
- Compatible with all Vanquish SLW and Incision hubs.
- Does not include link mounting hardware
- Incision .280″ width pivot ball compatible
- For use with IRC00509 S8E lower shock mount offset pivot ball at shock mount locations
Includes:
- (1) Rear Axle Housing
- (2) Rear Axles
- (1) Ring Gear
- (1) Pinion Gear
- (1) Spool
- (2) Axle End Caps
- (1) Differential Cover
- (2) Hex Adapters
- (6) Ball Bearings
- (2) Crush Sleeves
- (2) Pins
- (2) Lock Nuts
- Assembly Screws
MPN: VPS08801
