Description

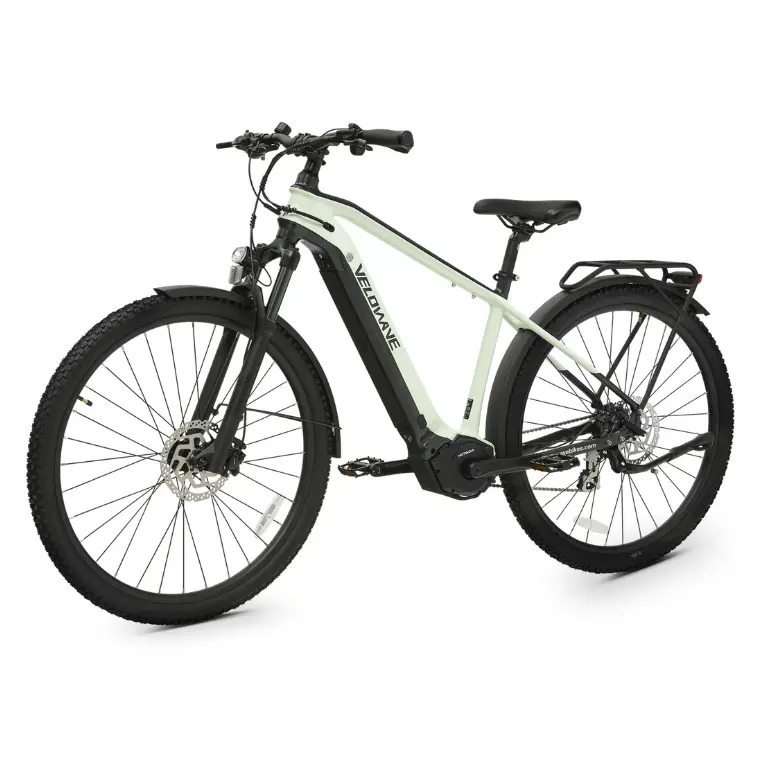

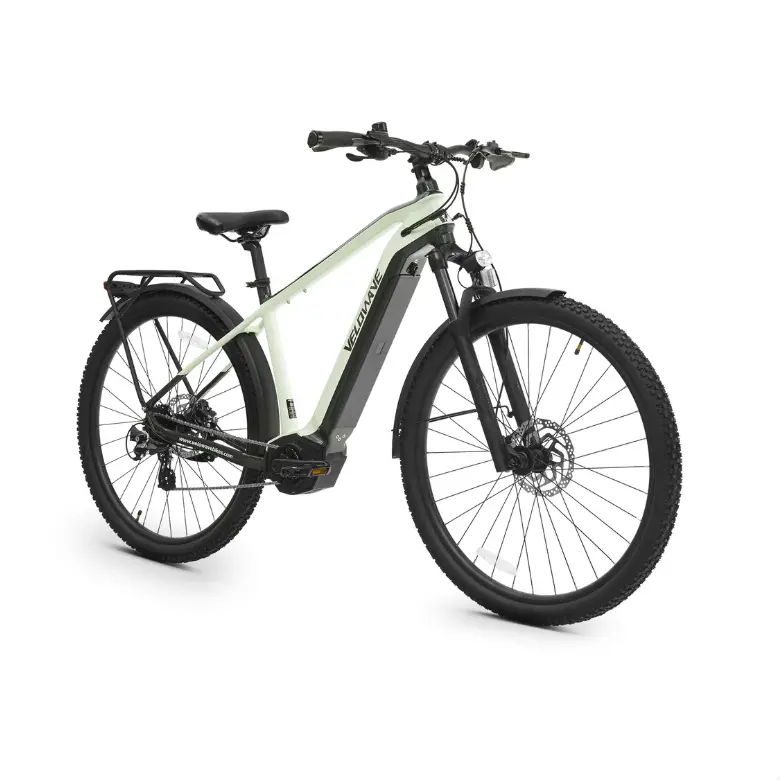

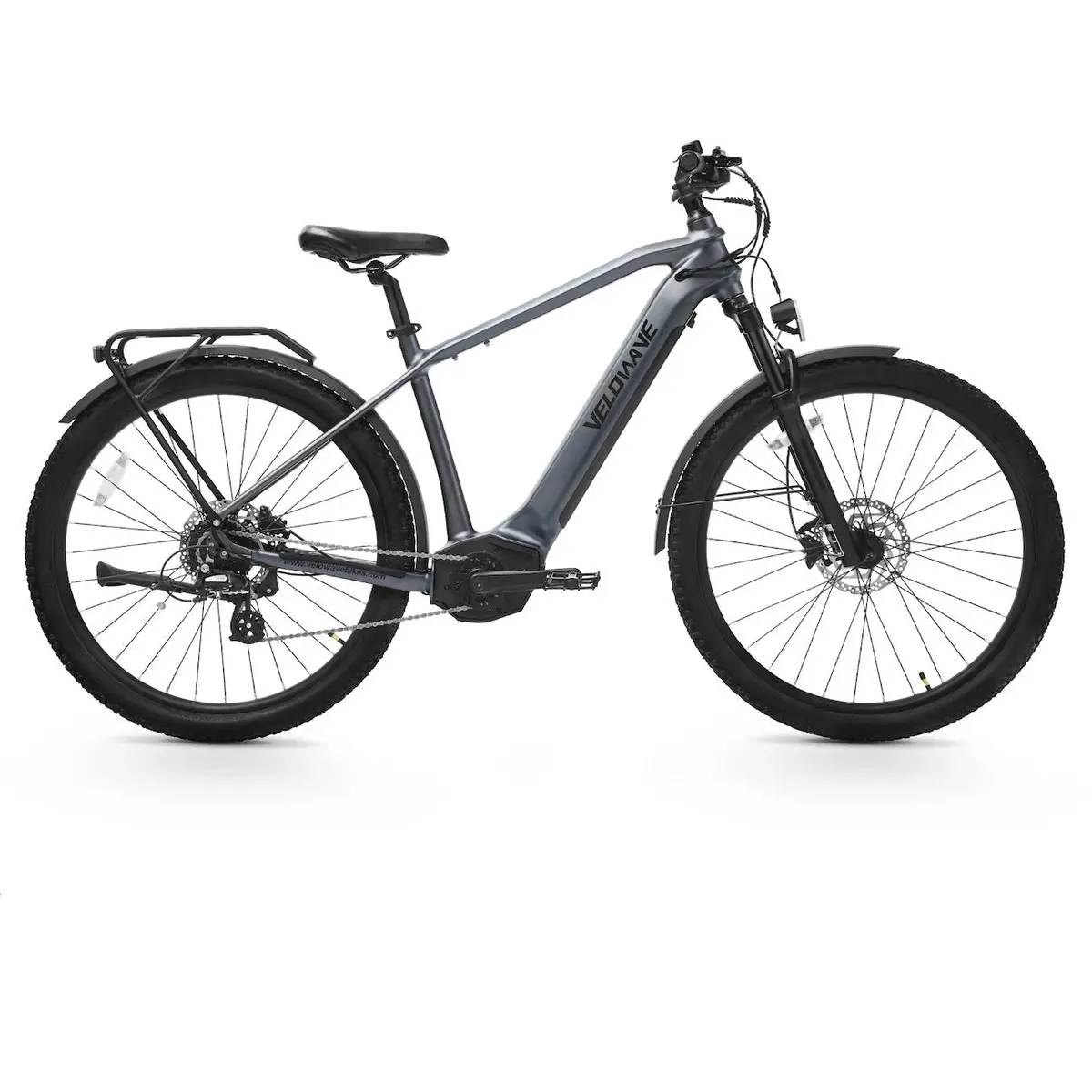

Velowave|Swift M Mid-Drive Commuter Electric Bike
Built for effortless urban mobility, this electric bike features a responsive mid-drive motor and torque sensor technology that intuitively adapts to your ride. A durable, lightweight frame and 2.1″ tires ensure stability and comfort across every city journey.
Specs & Size
| Size | 27.5” | 29” |
| Total Length | 1846mm | 1899mm |
| Head Tube Length | 150mm | 150mm |
| Seat Tube | 480mm | 480mm |
| Handlebar Height | 1028mm | 1058mm |
| Wheelbase | 1147mm | 1174mm |
| Standover Height | 751mm | 760mm |
| Reach | 399mm | 397mm |
| Seat Height Min/Max | 857mm/1050mm | 870mm/1062mm |
General
- Max Speed:20 MPH
- Range:Avg. 70 Miles* on PAS, up to 80 Miles on Level 1 (Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F/30°C, 70% humidity, on a level road, in pedal assist mode with Eco assistance. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)
- Pedal assist only. No throttle for a pure riding experience.
Frameset
- Frame:6061 Alluminum Alloy with Internal Battery
- Fork:Hydraulic Suspension Fork with 100mm travel, with lockout
Wheels
- Rim Material: Aluminum
- Rim Size:27.5″/29″ 32H Front & Rear
- Front Wheel Spokes:Black Stainless, 27.5″-13Gx262mm/264mm, 29″-13Gx281mm/283mm
- Rear Wheel Spokes:Black Stainless, 27.5″-13Gx262mm/264mm, 29″-13Gx281mm/283mm
- Tubes: Butyl Rubber, Schrader Valve
- Hubs:Front/Rear Axles with Quick Release Mechanism
- Tire:Kenda Tires
- Tire Size:27.5″/29″ x 2.1″
E-system
- Battery: Removable Internal Lithium-ion Battery, 48V 15Ah, 720Wh, LG Cells
- Charger: 48V 2 Amp Charger, Approx. 8 Hour Charging, Aviation Connector. UL LISTED
- Motor:MOTINOVA PEGASI PLUS Mid-Drive Motor, Rated 500W, Max Torque 100N·m
- Display:TFT Smart Easy Read Display with Backlight, Color screen
- Pedal Assist:5 Levels(1/2/3/4/Sport)
- Sensor:Torque Sensor
- Throttle:Pedal assist only, no throttle
- Front Light:6-48V LED Light 30 LUX
- Tail Light:6-48V LED Light 30 LUX
Drivetrain
- Shifter:Shimano 8-Speed SHIFT LEVER
- Rear Derailleur:Shimano ARDM310DLC 8-Speed
- Crank & Chainring:170MM W/16T
- Freewheel:Shimano 12-32T, 8-Speed Cassette
- Pedal: Alloy Platform Pedals
- Chain:KMC E8S EPT Reinforced Chain for Electric Bicycle, 106-Link
Components
- Saddle: Comfortable Wide Saddle
- Seatpost: Forged Alloy, Ø30.4*350mm
- Seat Clamp: Ø35mm Quick Release
- Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 40mm, RISE: ±7°
- Handlebar:Aluminum Ø31.8mm, Width 700mm
- Headset: Sealed Bearing Headset
- Grips: Nylon Lock-on, Ergonomic Comfort
- Brake:Shimano Hydraulic Disc Brakes
- Brake rotor:Shimano 180mm, 1.9mm thick
- Kickstand: Side Kickstand, Alloy, Rear Mount
- Fenders:Aluminum 27.5″x66mm/29″x66mm
- Rear Rack:Aluminum alloy, Integrated Rear Fender and Rack
Weight
- Net Weight:26.8kg (59.08lbs) (including battery)
- Gross Weight:34.2kg (75.4lbs)
- Battery Weight:3.8kg (8.37lbs)
- Weight limit:385lbs Payload Capacity
Size
- Product Size:27.5″-1850*710*1070mm/ 29″-1910*710*1110mm
- Packing Size:1600*280*890mm
What is in the box
Electric Bike x 1
Charger x 1
Battery x 1
Front Light & Reflector Combo x1
Spare Screws x 2
Front Axle Skewer x 1
Pedals x 2
Instruction Manual x 1
Allen Wrench x 1
Open End Wrench x 1
Quick Link x 1
Chain Breaker x 1
Quick Link Pliers x 1
Headset Cover Screw Cap x 1
