The stock transmission is designed to handle the output of the stock engine, but not much more. Increase the durability of your drivetrain with a BD transmission. All transmissions come with BD’s heavy duty transmission pan and most packages come bundled with our auxiliary transmission filter kit for added protection!
FEATURES
- Increase the durability of your drivetrain
- Provides manual torque converter lock-up clutch control
- Works with stock shifting and has gear limiting function
- Sealed plug-in wiring, no cutting or tapping of wires required
- Includes new model shift lever, BD control module, BD gear selection display and wiring harness
- Stock thrust bushings replaced with roller Torrington bearings
- Every transmission is tested on a dyno
- Upgraded Valvebody

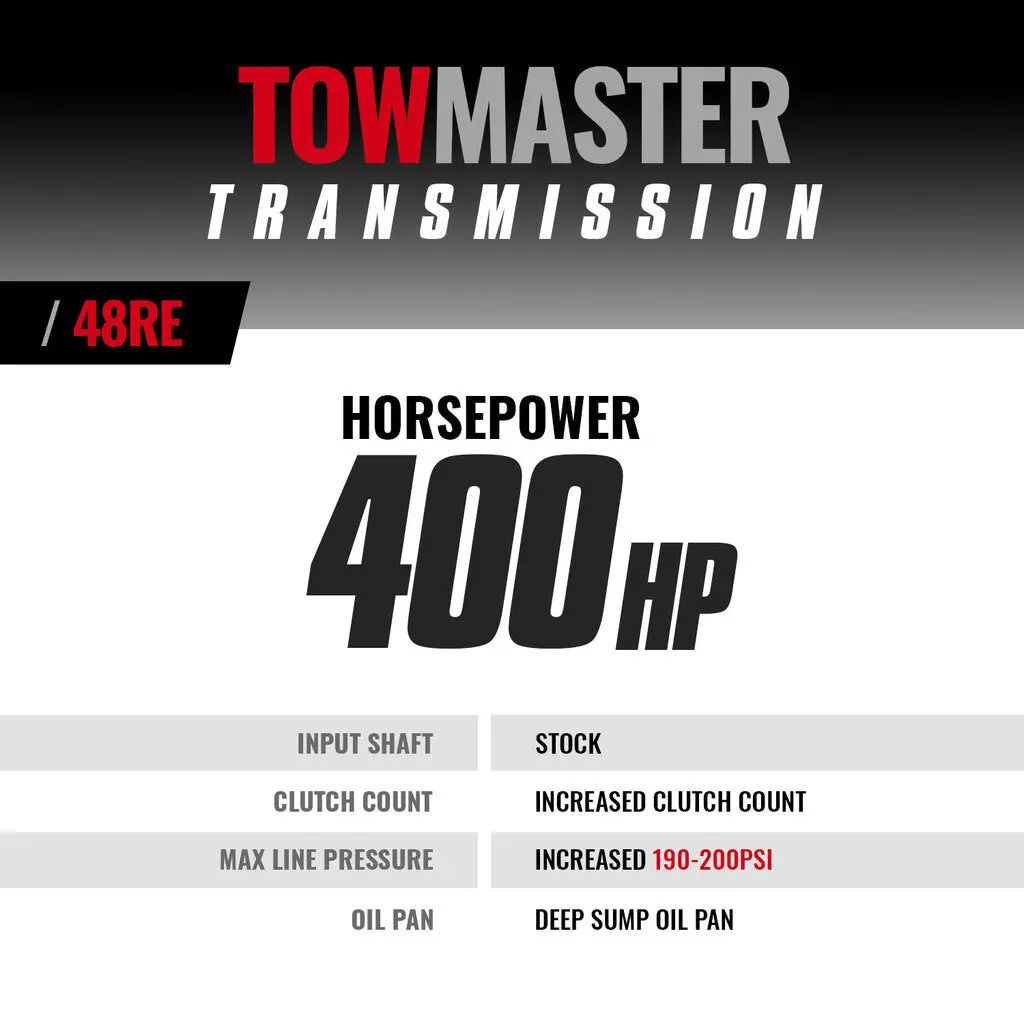

- Increased line pressure to 190-200psi
- No shuttle shifting problems
- Drilled intermediate shaft for increased lubrication
- Modified manual valve for lube in all positions
- Clutch Count: OD 6
- Clutch Count: OD DIRECT 10
- Clutch Count: FORWARD 5
- Clutch Count: DIRECT 6
- High temp/energy Raybestos band
- Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock
- Upgraded governor solenoid
- Cooler line case saver in every transmission
- BD auxiliary full flow filter kit for extra protection
- BD rigid aluminum heavy duty transmission pan
- Pan heat-dissipating fins keep temperature down
- Magnetic drain plug
- Pan adds 2qt extra oil capacity
- Not warranted for Race or Sled Pull use
- Available with Billet input shaft
INSTALL TIME
- 8 Hours
WARRANTY
Parts
- 36-Months
- 150,000 Miles
Labor
- 12-Months
- 24,000 miles
Note
- No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
NOTE
- BD torque converter must be installed at the time of installation of the transmission – use of a 3rd party or OE converter will invalidate the transmission warranty
EMISSIONS
- This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
VIDEOS
How Transmissions are BuiltTransmission Shop WalkthroughTowmaster Transmissions Explained[/shortdesc][product_details_title]Dodge 48RE Transmission | 2003-2004 4wd[/product_details_title][product_line]TRANSMISSIONS[/product_line][product_applications]Enable[/product_applications][product_manuals]Enable[/product_manuals][product_meta_keywords]1064194K, 1064194KF, bd transmission, bd trany, Dodge, 5.9L Cummins 03-04, Transmission, Automatic Transmissions, BD TowMaster Dodge 48RE Transmission – 2003-2004 4wd[/product_meta_keywords]
