Description
[shortdesc]
SPECIAL ORDER ITEM
This item is Non-Returnable, all sales are FINAL. Please consider this before purchasing.

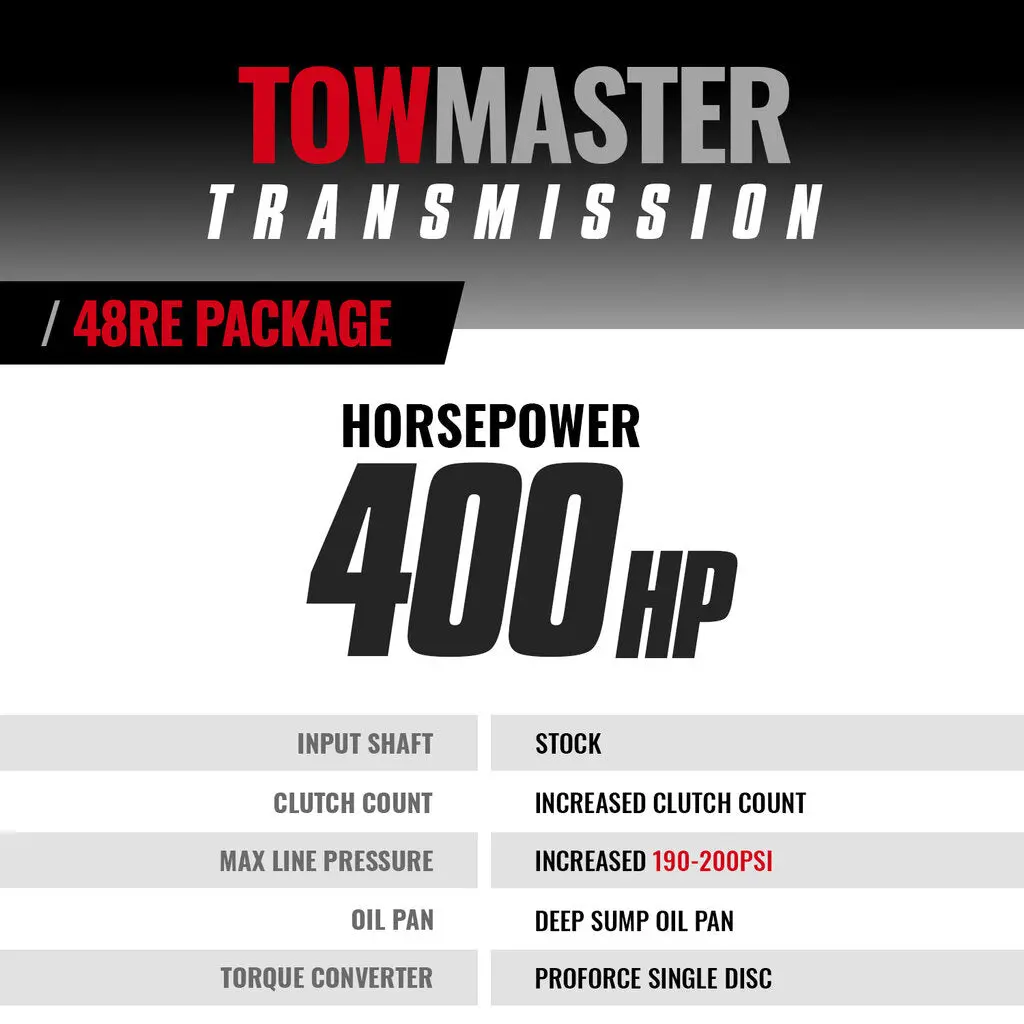

When you purchase a BD transmission and torque converter package, you are getting a matched set that has been dyno tested together for ultimate performance, and reliability. Every transmission comes with BD’s own Heavy Duty pan that adds extra fluid capacity. For towing, street or track, when it comes to a dependable transmission that will stand up to your diesel’s power and torque demands, the clear choice is BD.
FEATURES
TRANSMISSION:
- Upgraded Valvebody
- Upgraded governor solenoid
- Upgraded governor pressure transducer (47RE/48RE) – Twice the burst pressure than stock
- Increased line pressure to 190-200psi
- No shuttle shifting problems
- Modified manual valve for lube in all positions
- Stock thrust bushings replaced with roller Torrington bearings
- Clutch Count: DIRECT 6
- Clutch Count: FORWARD 5
- Clutch Count: OD 6
- Clutch Count: OD DIRECT 10
- High temp/energy Raybestos band
- Billet band lever
- Billet band strut
- Drilled intermediate shaft for increased lubrication
- BD rigid aluminum heavy duty transmission pan
- Pan adds 2qt extra oil capacity
- Pan heat-dissipating fins keep temperature down
- Magnetic drain plug
- Increase the durability of your drivetrain
- BD auxiliary full flow filter kit for extra protection
- Cooler line case saver in every transmission
- Every transmission is tested on a dyno
- Not warranted for Race or Sled Pull use
TORQUE CONVERTER:
- Enhanced Stall – Street/Towing applications
- Torque multiplying cast aluminum stators
- Lower rpm response than the stock converter
- More efficient operation
- Less heat and better fuel economy
- Stamp-forged steel front cover
- Furnace-brazed fins
- Up to triple the amount of lock-up clutch material
INSTALL TIME
- 7 Hours 30 Minutes
- Includes swapping of sensors and cooler flush
WARRANTY
Parts
- 36-Months
- 150,000 Miles
Labor
- 12-Months
- 24,000 miles
Note
- No Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet.
EMISSIONS
- This product does not require an EO in California. By nature of its design, it is legal for sale and use in all 50 states. Replacement parts included. (EMS:4)
VIDEOS
How Transmissions are BuiltTransmission Shop WalkthroughTowmaster Transmissions Explained[/shortdesc][product_details_title]48RE Trans & Converter Package | 2005-2007 4WD[/product_details_title][product_line]TRANSMISSIONS[/product_line][product_applications]Enable[/product_applications][product_manuals]Enable[/product_manuals][product_meta_keywords]1064214, 1064214K, 1064234, 1064234K, bd transmission, bd trany, Dodge, 5.9L Cummins 04.5-07, Transmission, Auto Trans & Converter Packages, BD TowMaster Dodge 48RE Transmission & Converter Package – 2005-2007 4wd w/TVV Stepper Motor – c/w TapShifter[/product_meta_keywords]
