Description

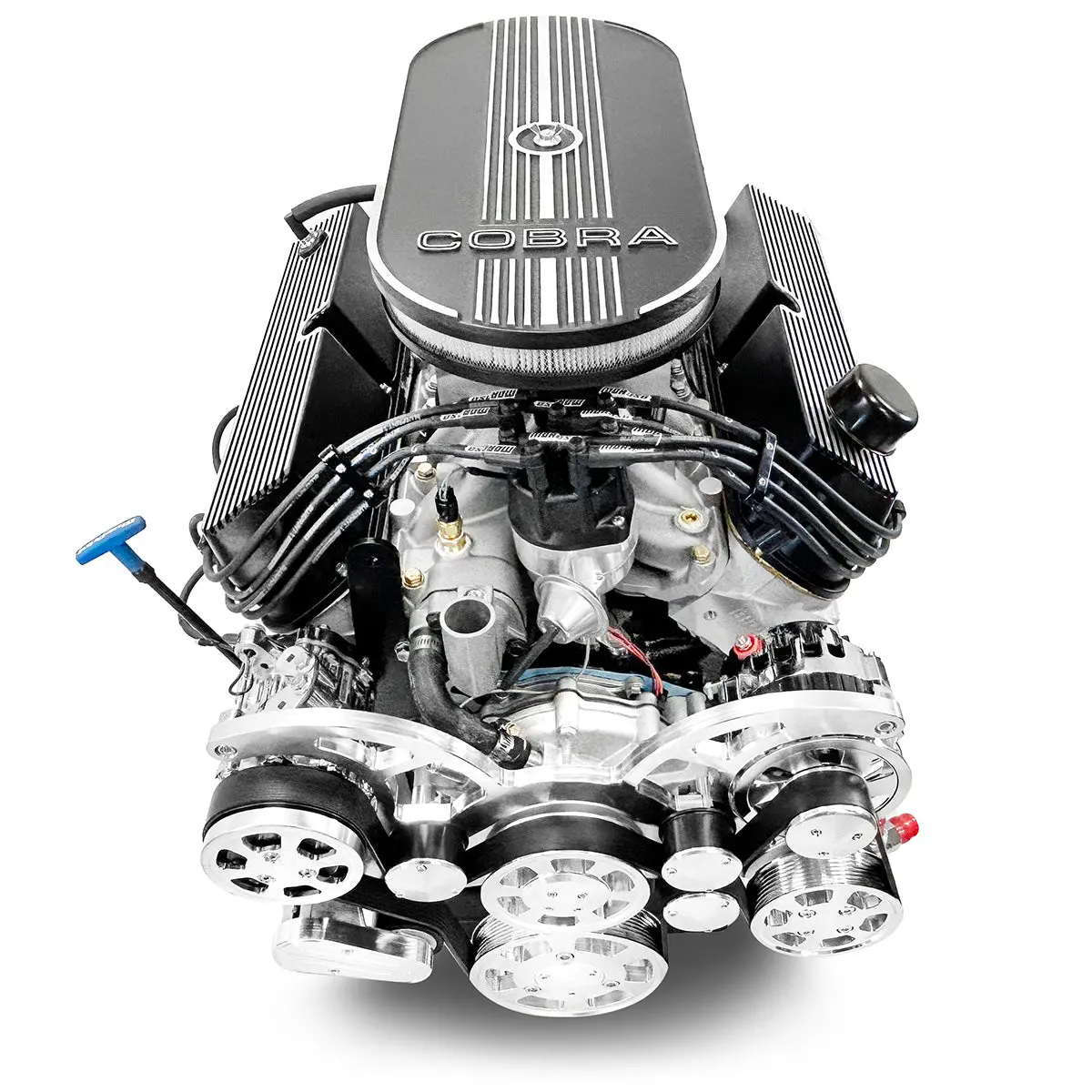

*Wrong transmission picture. Will come with a TKX Manual Transmission
Description:
- Horsepower & Torque: 541 horsepower / 519ft. lbs. Torque
- Compression Ratio: 10.0:1
- Aluminum Heads
- Hydraulic Roller Cam
- Forged Crank
- Forged Pistons
Block:
- NEW BluePrint Engines’ High Strength Cast Iron Block
- 4-Bolt Main
- 4.125″ Bore
- 1-Piece Rear Main Seal
- 9.500 Deck Height
Rotating Assembly:
- New Forged Crankshaft
- 4.000″ Stroke
- Forged 6.250″ Connecting Rods
- Forged Pistons
- Internally Balanced
Cylinder Heads:
- Aluminum Cylinder Heads
- 60cc Chamber
- 2.02″ Intake / 1.60″ Exhaust Valves
- 205cc Intake / 70cc Exhaust Runners
Cam Specs:
- Cam Type: Roller
- .608 Intake / .608 Exhaust Lift
- 248 Intake / 258 Exhaust Duration
- @.050-114 Degree Lobe Separation
Also Includes:
- Holley Sniper 2 EFI System – BPP550-510-3XX
- Ribbed Cobra Style Aluminum Valve Covers
- Aluminum Oval Air Cleaner with Cobra Script
- Harmonic Balancer
- Spark Plugs & Wires
- Timing Cover
- Powder Coated Oil Pan
- Thermostat and Thermostat Housing
- Oil Filter
- Plug Wire Separators
- EFI Fuel Pump Kit – BPP5267
- Polished Front Accessory Drive – BPP302FDACPS4
- Driver Side Standard Rotation Water Pump
- Type II Power Steering Pump
- Remote Power Steering Pump Reservoir
- 140amp 1-wire Alternator
- 7B10 Peanut Air Conditioning Compressor
Assembled with Complete TKX Transmission Package:
- Mcleod Super Street Pro Single Disk Clutch
- Hydraulic Throw Out Bearing
- Steel Bell Housing
- Billet Flywheel
- Engine Guard
- Starter
- First Gear Ratio: 2.87:1
- Second Gear Ratio: 1.89:1
- Third Gear Ratio: 1.28:1
- Fourth Gear Ratio: 1.00:1
- Fifth Gear Ratio: 0.81:1
Notes:
- Package Ships assembled as pictured.
- If this is being ordered for a Factory Five Vehicle, STOP and call us at 1-800-483-4263 for Proper Fitment Or visit FactoryFiveEngines.com
