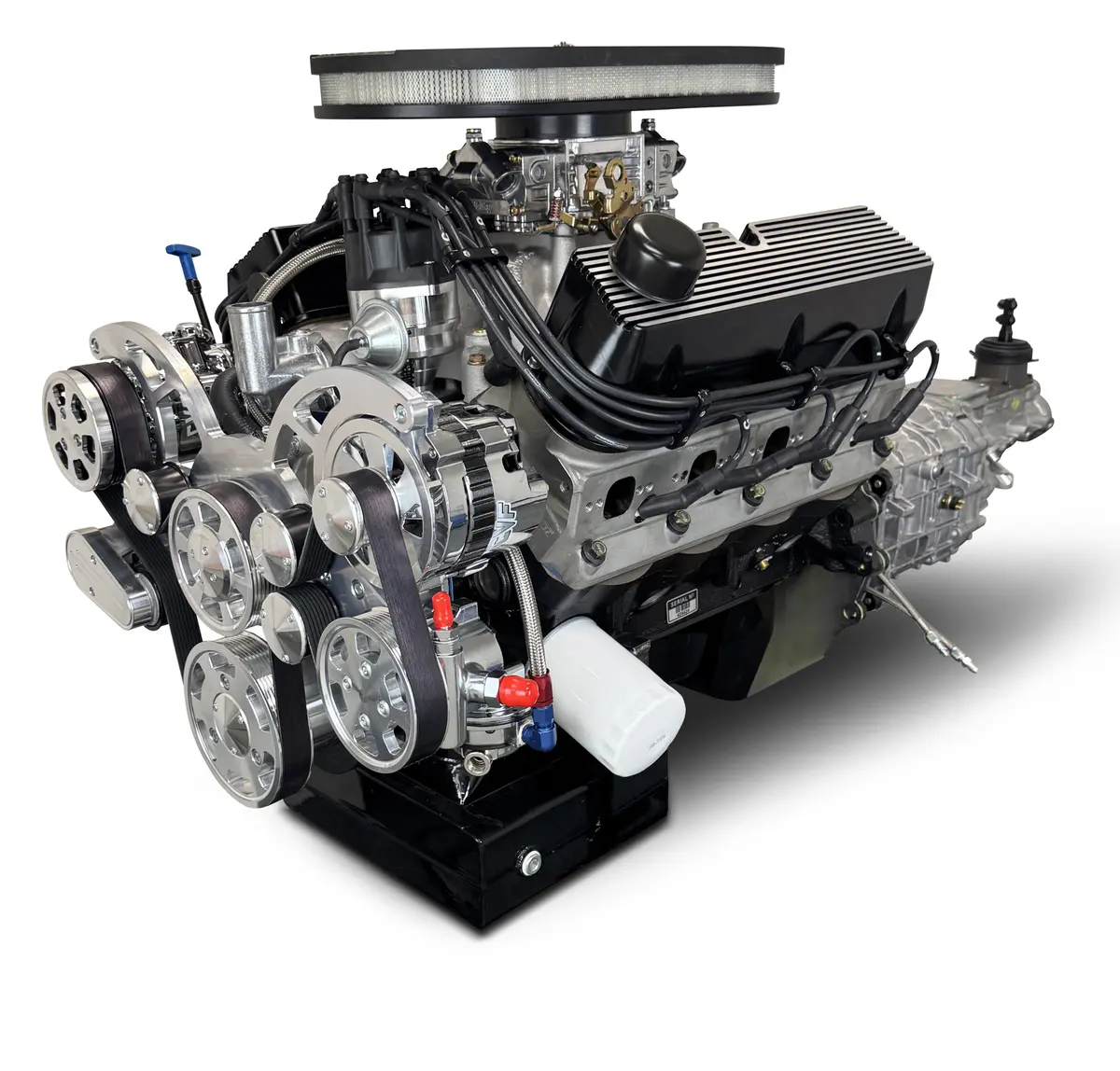

Ford Small Block 427 CI Cobra Edition Engine with TKX Manual Transmission – 541 HP, Carbureted, Polished Pulley Kit

Description

Description:

• Horsepower & Torque: 541 Horsepower / 519ft. lbs. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons

Block:

• NEW BluePrint Engines’ High Strength Cast Iron Block
• 4-Bolt Main
• 4.125″ Bore
• 1-Piece Rear Main Seal
• 9.500 Deck Height

Rotating Assembly:

• New Forged Crankshaft
• 4.000″ Stroke
• Forged 6.250″ Connecting Rods
• Forged Pistons
• Internally Balanced

Cylinder Heads:

• Aluminum Cylinder Heads
• 60cc Chamber
• 2.02″ Intake / 1.60″ Exhaust Valves
• 205cc Intake / 70cc Exhaust Runners

Cam Specs:

• Cam Type: Roller
• .608 Intake / .608 Exhaust Lift
• 248 Intake / 258 Exhaust Duration
• @.050-114 Degree Lobe Separation

Also Includes:

• Ribbed 427 Cobra Aluminum Valve Covers
• Holley 870 cfm Carburetor
• Harmonic Balancer
• Spark Plugs & Wires
• Plug Wire Separators
• Timing Cover
• Powder Coated 9qt. Oil Pan
• Thermostat and Thermostat Housing
• Oil Filter
• Electric Fuel Pump Black
• Polished Front Accessory Drive – BPP302FDACPS4
  • Driver Side Standard Rotation Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Air Conditioning Compressor

Assembled with Complete TKX Transmission Package:

• Mcleod Super Street Pro single disk clutch
• Hydraulic throw out bearing
• Steel bell housing
• Billet flywheel
• Engine guard
• Starter
• First Gear Ratio: 2.87:1
• Second Gear Ratio: 1.89:1
• Third Gear Ratio: 1.28:1
• Fourth Gear Ratio: 1.00:1
• Fifth Gear Ratio: 0.81:1

Notes:

•  Package Ships assembled as pictured.
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
