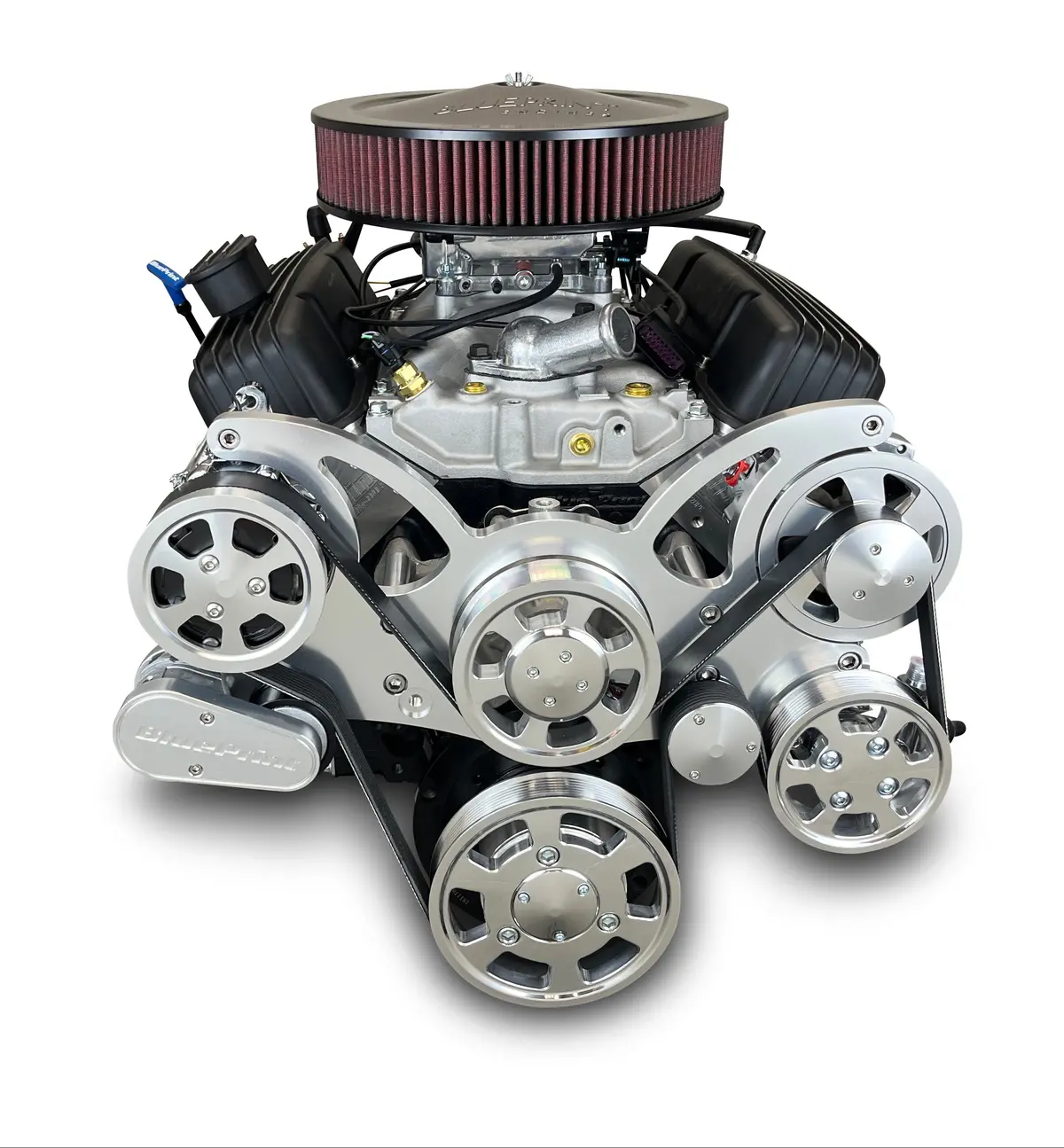

GM 383ci Small Block Engine with 700R4 Automatic Transmission – 436 HP, Standard Builder Series, Polished Pulleys, Fuel Injected

Description

DESCRIPTION:

• Horsepower & Torque: 436 Horsepower / 443 ft. lbs. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Cast Crank
• BluePrint Engines Hypereutectic Pistons

BLOCK:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.000″ Bore

ROTATING ASSEMBLY:

• Cast Crankshaft
• 3.750″ Stroke
• OEM Type 5.700″ Connecting Rods w/ 150,000 PSI Bolts
• Hypereutectic Pistons
• Externally Balanced Front and Rear

CYLINDER HEADS:

• BluePrint Aluminum Cylinder Heads – H8002K
• 64cc Chamber
• 2.02″ Intake / 1.60″ Exhaust Valves
• 195cc Intake / 75cc Exhaust Runners

CAM SPECS:

• Hydraulic Roller
• .544 Intake / .555 Exhaust Lift
• 230 Intake / 236 Exhaust Duration
• @ .050, 110 Degree Lobe Separation

Also Includes:

• Holley Sniper 2 EFI – BPP550-510-3XX
• Pro Series Ready Run Distributor – BPP3503BK
• Aluminum Intake Manifold – BPP350VINT
• Thermostat and Thermostat Housing
• EFI Fuel Pump Kit – BPP5267
• Spark Plugs & Wires
• Plug Wire Separator
• Valve Covers
• Timing Cover
• Oil filter
• Oil Pan
• Polished Front Accessory Drive – BPP350FDACPS4
  • Reverse Rotation Short Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Style Air Conditioning Compressor

Assembled with Complete 700r4 Automatic Transmission Package:

• 700R4 Complete Package
• 2200-2400 Stall Torque Converter
• Flex Plate
• Starter

Notes:

• This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• Package Ships assembled as pictured.
• Due to numerous tire/rear gear combinations, this transmission does NOT ship with a speedometer gear, or sender housing.
• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
