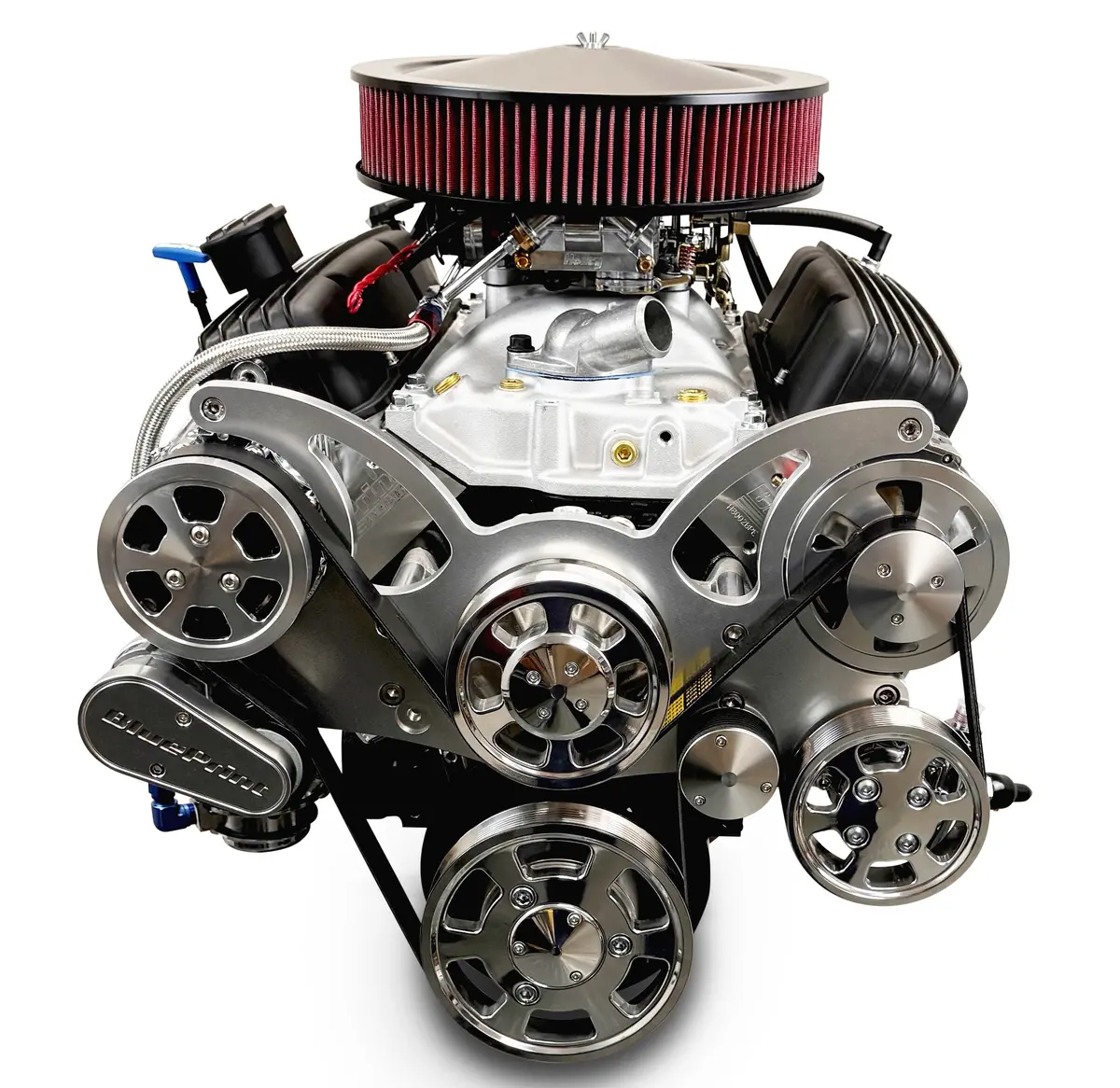

GM 383ci Small Block Engine with TKX Manual Transmission – 436 HP, Standard Builder Series, Polished Pulleys, Carbureted

Description

*EFI engine pictured will come with a carburetor.

Description:

• Horsepower & Torque: 436 Horsepower / 443 ft. lbs. Torque
• Compression Ratio: 10.0:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Cast Crank
• BluePrint Engines Hypereutectic Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• Drilled and Tapped for Clutch Linkage
• Mech Fuel Pump Provision: Yes
• Passenger Side Dipstick
• 1-Piece Rear Main Seal
• 4-Bolt Main
• 4.000″ Bore

Rotating Assembly:

• Cast Crankshaft
• 3.750″ Stroke
• OEM Type 5.700″ Connecting Rods w/ 150,000 PSI Bolts
• Hypereutectic Pistons
• Externally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads – H8002K
• 64cc Chamber
• 2.02″ Intake / 1.60″ Exhaust Valves
• 195cc Intake / 75cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .544 Intake / .555 Exhaust Lift
• 230 Intake / 236 Exhaust Duration
• @ .050-110 Degree Lobe Separation

Also Includes:

• Holley 750cfm Classic Carburetor – BPP080508S
• Aluminum Intake Manifold – BPP350VINT
• Thermostat and Thermostat Housing
• Mechanical Fuel Pump – BPP61073
• Spark plugs and Wires
• Plug Wire Separators
• Timing Cover
• Valve Covers
• Oil Filter
• Oil pan
• Polished Front Accessory Drive – BPP350FDACPS4
  • Reverse Rotation Short Water Pump
  • Type II Power Steering Pump
  • Remote Power Steering Pump Reservoir
  • 140amp 1-wire Alternator
  • 7B10 Peanut Style Air Conditioning Compressor

Assembled with Complete TKX Transmission Package:

• Mcleod Super Street Pro Single Disk Clutch
• Hydraulic Throw Out Bearing
• Bell Housing
• Billet Flywheel
• Starter
• First Gear Ratio: 2.87:1
• Second Gear Ratio: 1.89:1
• Third Gear Ratio: 1.28:1
• Fourth Gear Ratio: 1.00:1
• Fifth Gear Ratio: 0.81:1

Notes:

• This engine features a true 4-inch bore, which mathematically yields 377 CID with a 3.75-inch stroke.
• The front accessory drive on this engine fits many vehicles, however it is the customer responsibility to accurately measure and confirm fitment.  Note this is a low-profile design, but things such as power steering hoses, alternator wiring, and additional fittings/fabrication may be required on some vehicles.
• Package Ships assembled as pictured.
• The performance aluminum cylinder heads on this engine feature a .500 raised port vs OEM.
• IF THIS IS BEING ORDERED FOR A FACTORY FIVE VEHICLE, STOP AND CALL US AT 1-800-483-4263 FOR PROPER FITMENT OR VISIT FACTORYFIVEENGINES.COM
