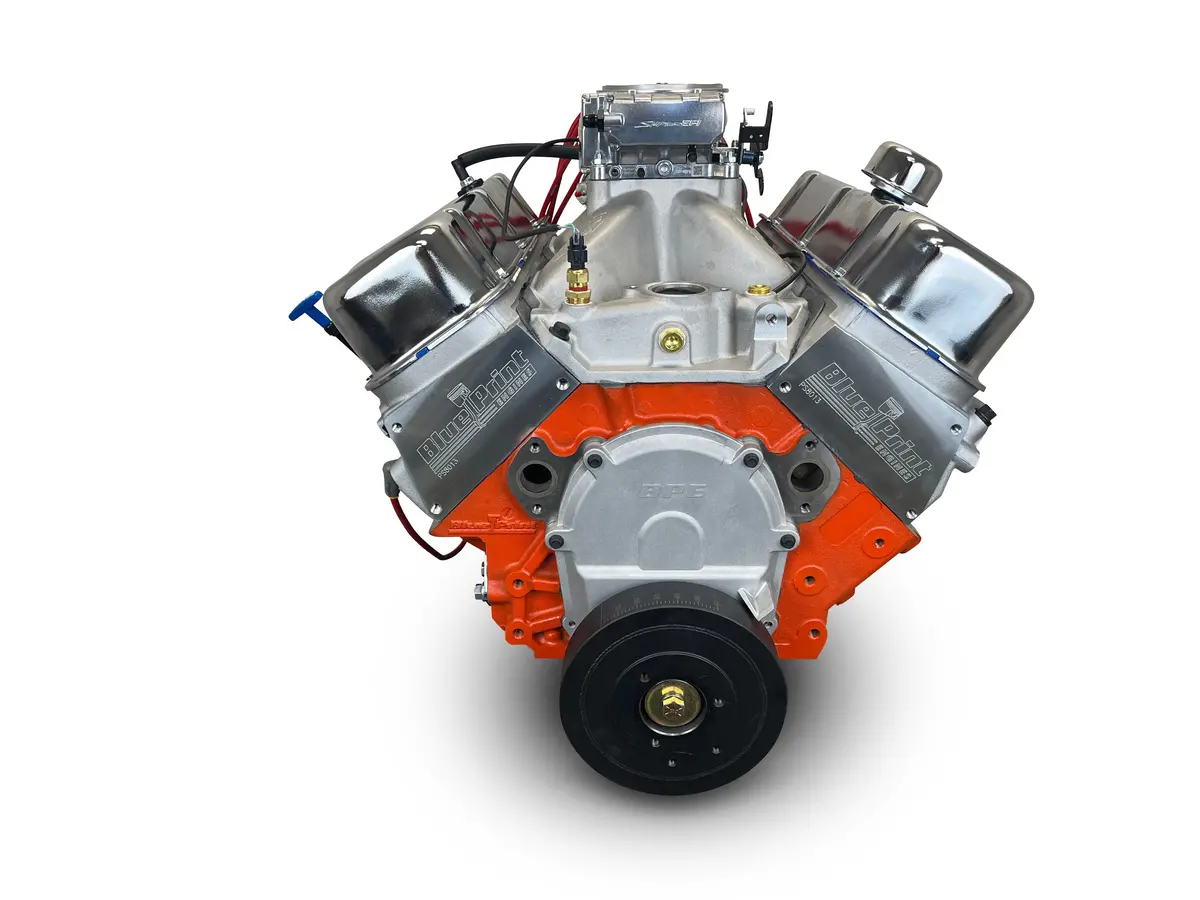

GM Big-Block 502ci Pro Series Engine – 627 HP, Base-Dressed, Fuel Injected

Description

Description:

• Horsepower & Torque: 627 Horsepower / 569 FT. LBS. Torque
• Compression Ratio: 10.1:1
• BluePrint Engines Aluminum Heads
• BluePrint Engines Hydraulic Roller Cam
• BluePrint Engines Forged Crank
• BluePrint Engines Forged Pistons

Block:

• BluePrint High Strength Cast Iron Block
• Manufactured and Machined in the USA!
• Mech Fuel Pump Provision: Yes
• 1-Piece Rear Main Seal
• Standard Deck
• 4-Bolt Main
• 4.466″ Bore

Rotating Assembly:

• BluePrint Forged Crankshaft
• 4.000″ Stroke
• Forged H-beam 6.385″ Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads -PS8013
• 119cc Chamber
• 2.30″ Intake / 1.88″ Exhaust Valves
• 316cc Intake / 124cc Exhaust Runners
• Cylinder Heads Feature a .300 in. Raised Exhaust Port vs an OEM Casting
• Must Verify Header / Exhaust Clearance

Cam Specs:

• Hydraulic Roller
• .647 Intake / .647 Exhaust Lift
• 248 Intake / 254 Exhaust Duration
• @ .050-112 Degree Lobe Separation

Also Includes:

• Pro Series Ready Run Distributor – BPP3503BK
• Holley Sniper 2 EFI System – BPP550-510-3XX
• Harmonic Balancer – BPP454I
• Spark Plugs and Wires
• Timing Cover
• Valve Covers
• Oil Pan

Notes:

• Not for use in pollution-controlled vehicles
