Description

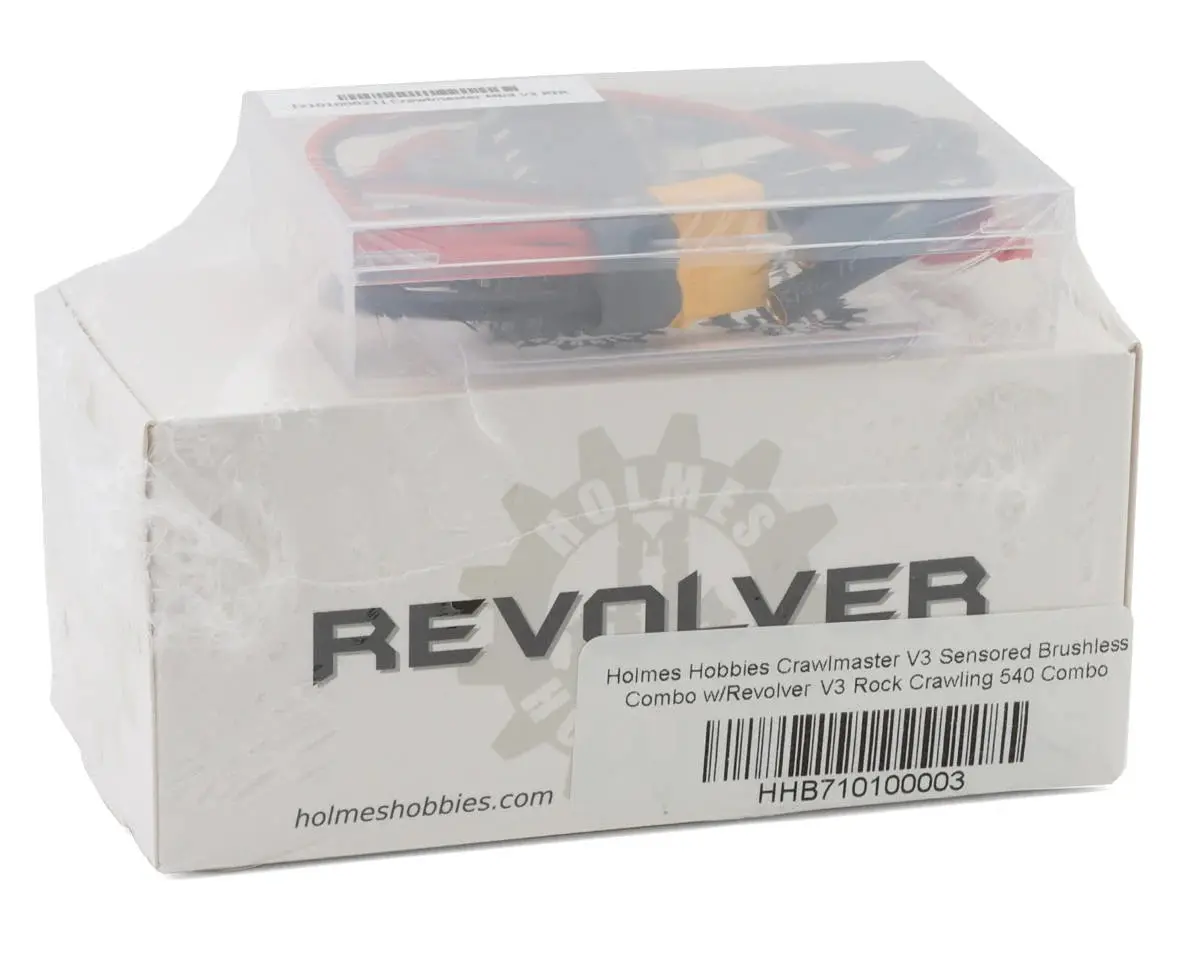

This is the Crawlmaster V3 Sensored Brushless ESC Combo from Holmes Hobbies. Specifically designed for 1/10th scale rock crawlers, this combo offers unmatched performance and control for trail, scale, and rock crawling applications. Its lightweight design and efficient operation make it an ideal choice for not just casual drivers but even the most serious comp crawler applications.
The combo pairs the advanced 32-bit Crawlmaster Mini ESC with the powerful Revolver 540M 1800Kv motor, delivering smooth throttle response, high torque, and silent operation. With conformal coating for water resistance and intelligent low-speed control, this setup is ready to handle demanding terrains and precise crawling challenges.
Features:
- 32-bit ESC processing for advanced performance and future upgrades
- Sinewave startup for smooth, silent operation
- Revolver 540M motor with high torque and ultralight design
- Conformal-coated ESC for water resistance
- USB programmer included for easy customization
| ESC Specifications | |
| Input Voltage: | 2-4S lipo (20V max) |
| Internal BEC: | 3A – 7.4V |
| Length: | 1.54in (39mm) |
| Width: | 1.02in (26mm) |
| Height: | 0.43in (11mm) |
| Weight: | 1.38oz (39g) |
| Connector Type: | XT60 |
| Motor Specifications | |
| Type: | Brushless Sensorless |
| kV Rating: | 1800kV |
| Input Voltage: | 2-4S (7.4-14.8V) LiPo |
| Diameter: | 1.4in (35.56mm) |
| Length: | 1.2in (31mm) |
| Weight: | 106g (3.73oz) |
| Poles: | 14 |
| Stator: | 1.102×0.62in (28x16mm) |
| Connector: | 4mm Bullets |
Includes:
- (1) Crawlmaster Mini v3 Rock Crawler ESC
- (1) Revolver 540M 1800Kv Motor
- (1) USB programmer
Recommended Use:
- 1/10th and smaller Single speed Trail, Scale, and Rock Crawlers such as TRX4 Sport, SCX10, Element Enduro, etc.
- 8lb limit, subject to gearing, driving style, terrain, etc.
- 1800kV motor limit for 4S use
- NOT recommended for two-speed vehicles, rock racers, tow rigs, and other high-load installations
MPN: HHB710100003
