Description

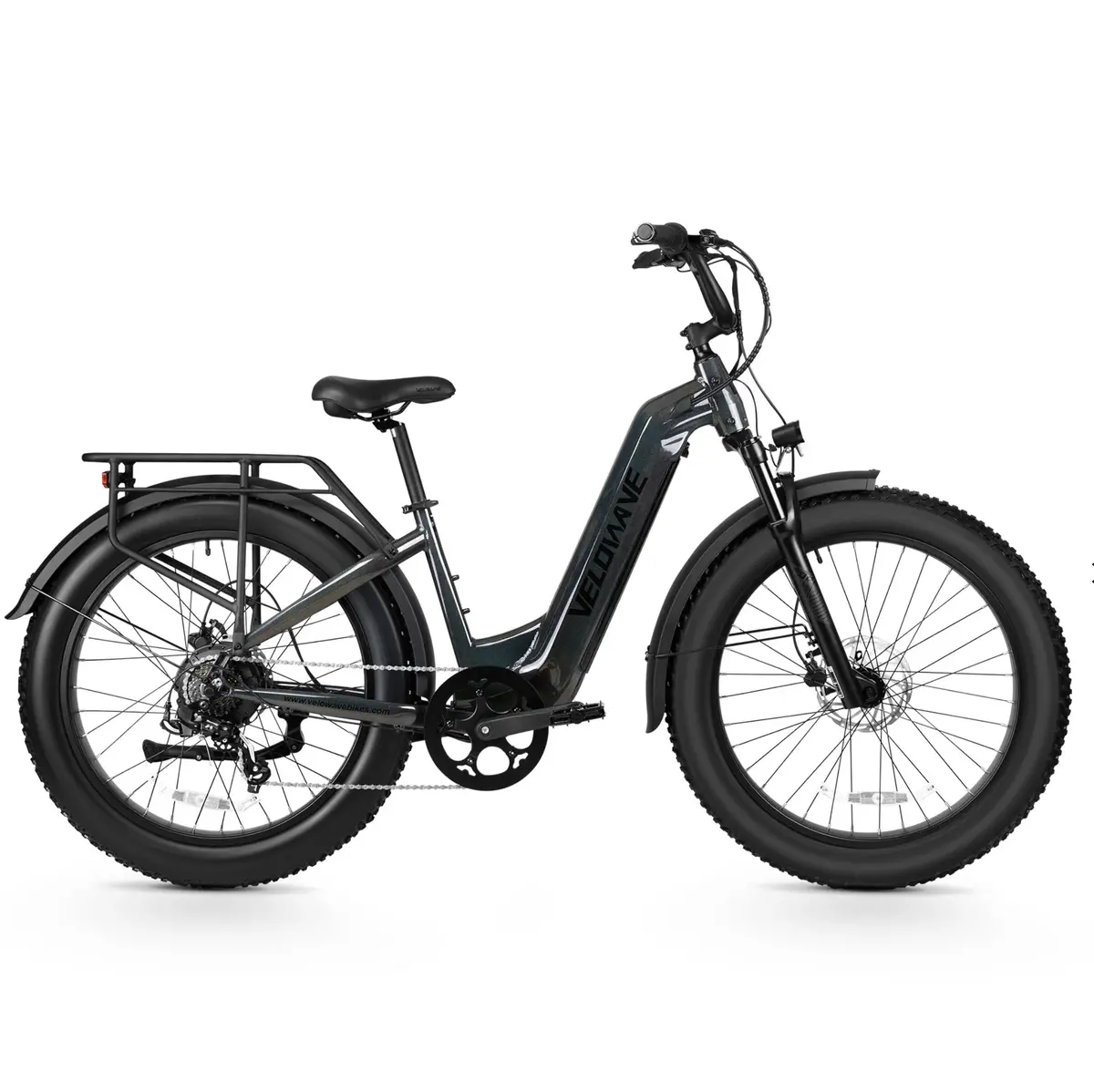

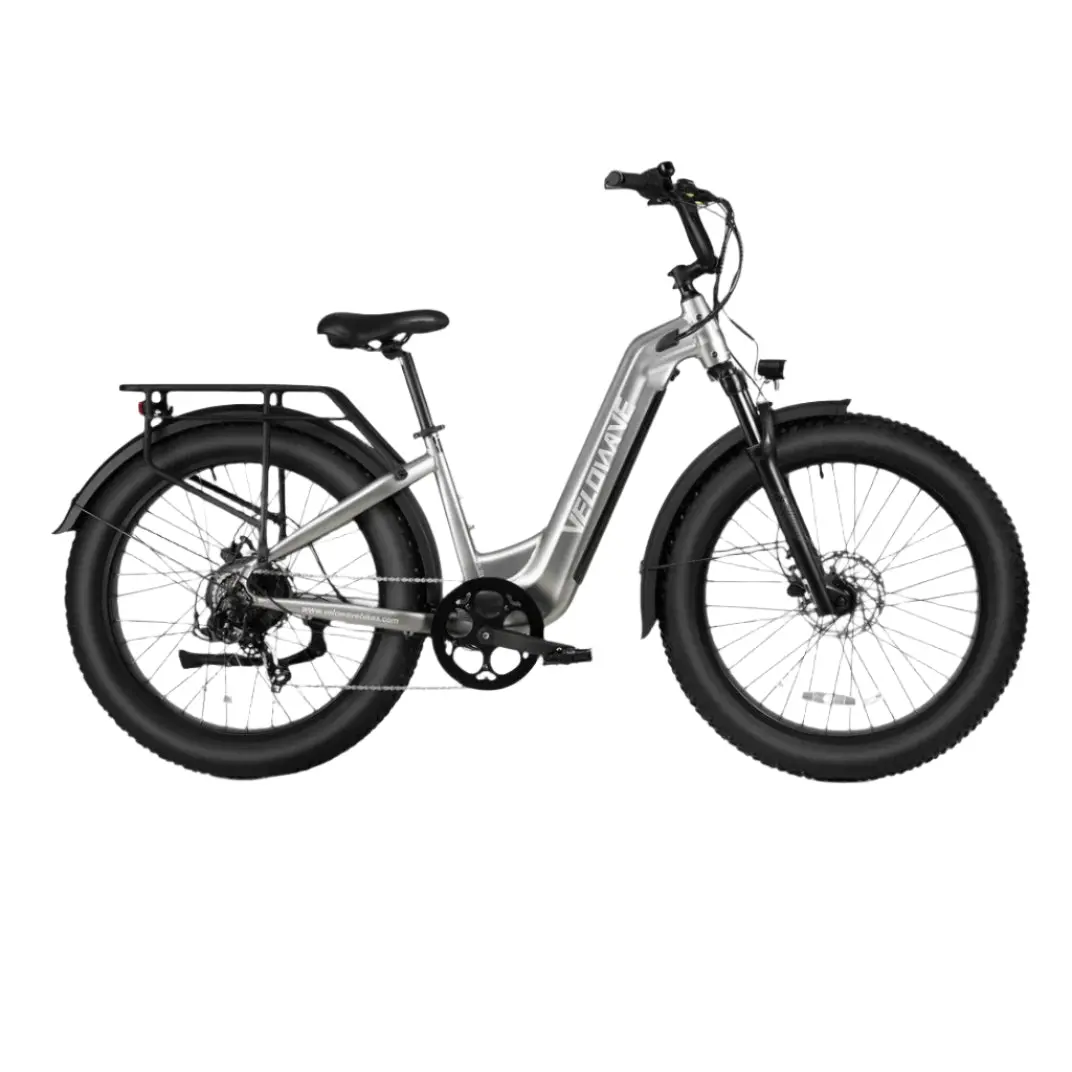

Velowave| Ranger Step-Thru 3.0 Torque Sensor Electric Bike
Discover the perfect blend of comfort, power, and advanced technology with the Ranger 3.0 Step-Thru. Designed for smooth, easy access and a seamless riding experience, this bike is built to conquer both daily commutes and thrilling off-road adventures. Equipped with a responsive torque sensor and a robust 750W motor (peaking at 1000W), the Ranger 3.0 Step-Thru delivers effortless performance across all terrains. Whether you’re navigating city streets or exploring nature trails, this bike is designed to elevate every ride.
Specs & Size
| Frame Size | Standard (mm) |
| Handlebar Height | 1206mm |
| Reach | 402mm |
| Head Tube Length | 140mm |
| Seat Tube Length | 425mm |
| Standover Height | 457mm |
| Wheelbase | 1172mm |
| Total Length | 1922mm |
| Seat Height Min/Max | 819/1009mm |
General
- Classes:Class 3(Ebikes can go up to 28mph with pedal assistance)
- Speed:Up to 28 MPH on Pedal Assist; 20 MPH on Throttle;
- Range:Avg. 65 Miles* on PAS, up to 90 Miles on Level 1, 30 Miles* on Throttle (Range Per Charge is measured under the conditions that power is sufficient, with a 75kg load, at 86°F(30°C), 70% humidity, on a level road, in pedal assist mode with level 1 assistance, and in pure electric riding mode by throttle. Actual results may vary based on differences in temperature, load, wind speed, road conditions and other factors.)
Frameset
- Frame:6061 Alluminum Alloy with Internal Battery
- Fork:Hydraulic Suspension Fork with 60mm travel, with lockout
Wheels
- Rim:Aluminum 26″ 36H Front & Rear
- Spokes:Black Stainless, Front 13Gx 244/246mm, Rear 12Gx217/219mm
- Hubs:Disc Nutted Front Axles
- Tires:Kenda 26″ x 4.0″ Fat Tires
- Tubes:Butyl Rubber, Schrader Valve
E-system
- Motor:750W （Peak 1000W）,85Nm
- Throttle:Throttle on demand – Throttle from a complete stop
- Display:TFT Smart Easy Read Display with Backlight, Colorful screen
- Battery:Removable Internal Lithium-ion Battery 48V15AH (720Wh) with LG cells
- Pedal Assist:5 Levels
- Sensors:Torque Sensor
- Charger:48V 2 Amp Charger, Approx. 8 Hour Charging
- Light:Front 48V LED Light 75 LUX
- Tail Light:Rear Break Light, 12V 20 LUX
Drivetrain
- Crankset:170mm w/ 52 T
- Rear Derailleur:Shimano ARDTY500D 7-Speed
- Freewheel:Shimano 14-28T, 7-Speed freewheel
- Shift Lever:Shimano 7-Speed RevoShift
- Chain:KMC 124 Link, 7-Speed
- Pedals:Alloy Platform
Components
- Saddle:Comfortable Wide Saddle
- Seatpost:Forged Alloy, Ø30.4*350mm
- Seat Clamp:Ø35 mm Quick Release
- Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 40mm, RISE:±7°
- Handlebars:Aluminum Ø31.8mm, Width 720mm
- Headset:Sealed Bearing Headset
- Grips:Ergonomic Comfort
- Brakes:Hydraulic Disc Brakes w/180mm discs, w/ power-cut-off function
- Kickstand:Alloy, Rear Mount
- Fenders:Plastic 26″x110mm
- Rear Rack:Aluminum alloy rear rack
Weight
- Product Weight:35.5KG (78.26LBS) (including battery)
- Package Weight:43.6KG (96.12LBS)
- Battery Weight:4KG (8.82LBS)
- Max Load Capacity:300 lbs Payload Capacity
Size
- Product Size:1930*740*1210MM
- Package Size:1590*325*895MM
What is in the box
