Description

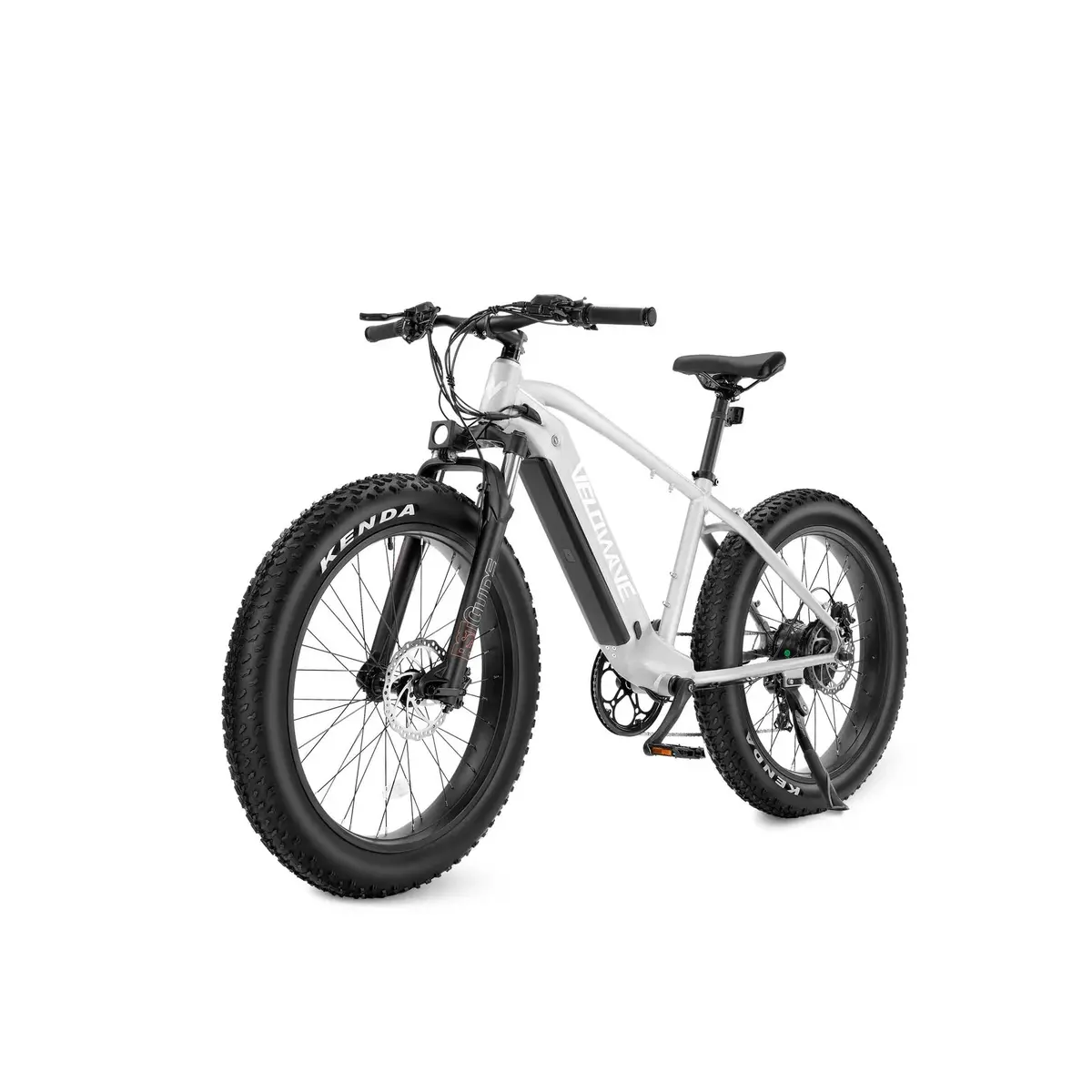

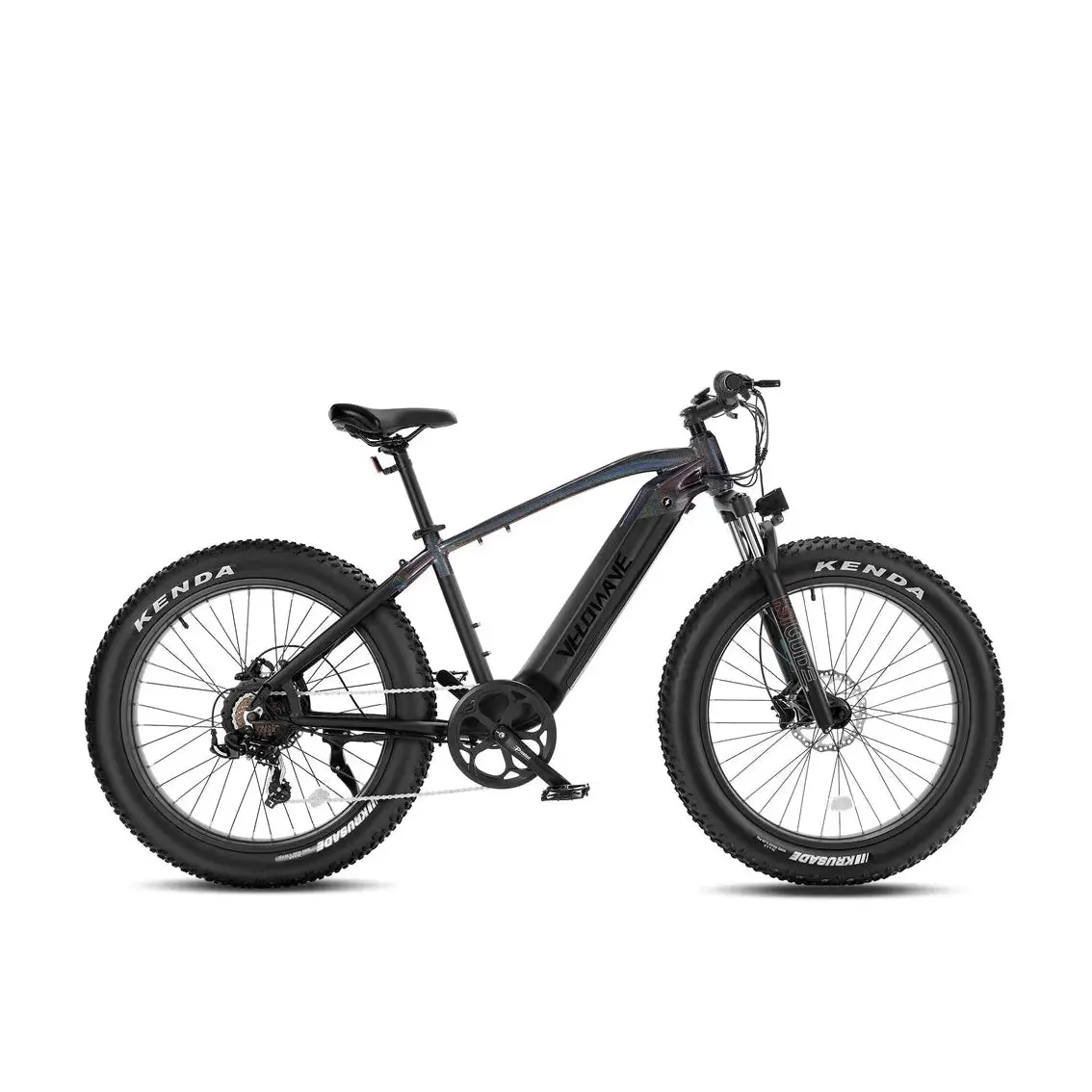

Velowave| Ranger Fat Tire Electric Bike
Discover the ultimate freedom with the Ranger, Velowave’s flagship electric bike, expertly designed for thrilling adventures of up to 40 miles.
Equipped with a powerful 750W motor and 4″ fat tires, it delivers exceptional performance on both bustling urban streets and challenging rugged trails, offers outstanding traction and stability.
The classic frame design optimizes your riding position, ensuring comfort and efficiency for long-distance travels.
Why settle for ordinary ? Experience the perfect fusion of versatility and range with the Ranger.
Specs & Size
| Frame Size | Standard (mm) |
| Handlebar Height | 1080mm |
| Reach | 460mm |
| Head Tube Length | 125mm |
| Seat Tube Length | 457.2mm |
| Standover Height | 768mm |
| Wheelbase | 1188mm |
| Total Length | 1940mm |
| Seat Height Min/Max | 850mm/1084mm |
General
- Classes:Class 3(Ebikes can go up to 28mph with pedal assistance)
- Max Speed:28MPH by pedal, 20MPH by throttle
- Range:Avg. 40 Miles* on PAS, up to 40 Miles on Level 1, 35 Miles* on Throttle (Calculation based on rider’s weight of 75kg. Range varies according to road condition, weather, rider’s weight etc.)
Frameset
- Frame:6061 Aluminium, Removable Battery, Internal Routing
- Fork:Hydralic Suspension Fork
Wheels
- Rim Material:Aluminum
- Rim Size:26 x 3.0
- Front Wheel Spokes:13K x 243
- Rear Wheel Spokes:12K x 198
- Tire:Kenda Fat Tires
- Tire Size:26″ x 4.0″
E-system
- Battery:48V 15Ah, 720Wh, LG 21700 Cells
- Charger:Input 100-240V~, 2.8A(Max.), 50-60Hz. Output 54.6V⎓2.0A, Aviation Connector. UL LISTED
- Motor:BAFANG Geared Hub Motor, Rated 750W, Peak 1275W, Max Torque 80NM
- Controller:48V 25A Peak
- Display:Multifunctional Color-Screen Display
- Pedal Assist:Cadence Sensor
- Throttle:Thumb Throttle
- Front Light:48V 10W LED Light
Drivetrain
- Shifter:Shimano, 7-Speed
- Rear Derailleur:Shimano, Long Cage
- Crank & Chainring:52T, 170mm Alloy Crank
- Freewheel:7-Speed
- Pedal:Alloy Platform Pedals
Components
- Saddle:Comfortable Wide Saddle
- Handlebar:Alloy, 705mm width
- Grips:Nylon Lock-on
- Brake:Front & Rear Hydralic Disc Brakes
- Brake rotor:180mm, 1.9mm thick
- Kickstand:Side Kickstand
- Seatpost:Forged Alloy, Ø31.6*350mm
- Stem:Bar bore: Ø31.8mm, Clamp I.D.: Ø28.6mm, HEIGHT: 100mm, RISE: ±6°
- Handlebar:Aluminum Ø31.8mm, Width 680mm
Weight
- Net Weight:32kg(70.5lb)
- Gross Weight:43kg(94.8lb)
- Battery Weight:3.85kg(8.5lb)
- Weight limit:136kg (300lb) Payload Capacity
Size
- Product Size:1946x1120x705mm
- Packing Size:1570x350x825mm
What is in the box
Electric Bike x 1
Charger x 1
Battery x 1
Headlight x 1
Spare Spokes x 2
Pedals x 2
Front Reflector x 1
Rear Reflector x 1
Three Way Allen Wrench x 1
Allen Wrench x 2
Front Axle Skewer x 1
Spare Screws x 2
Open End Wrench x 2
