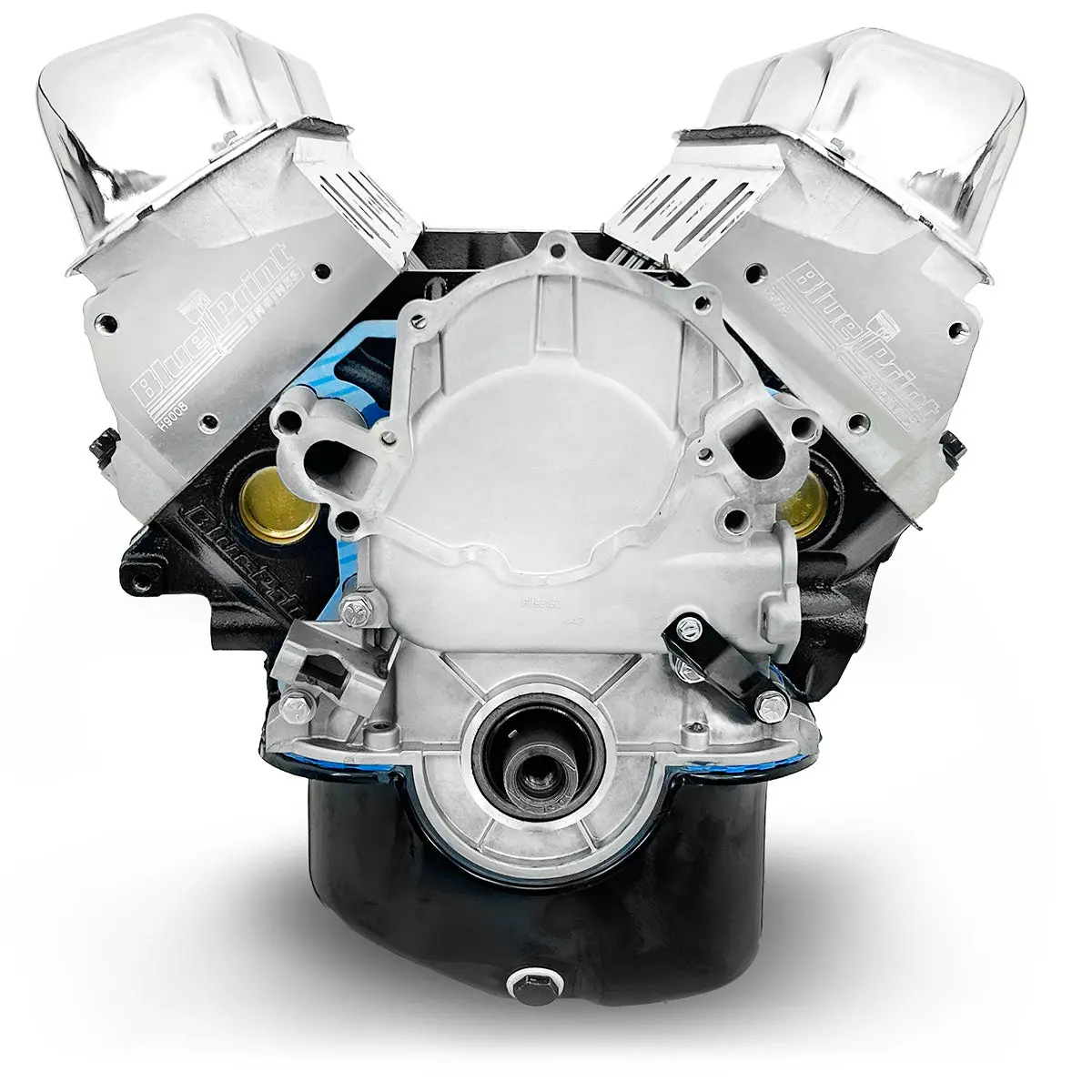

Ford 347 CI Small Block Long-Block Engine – 415 HP & Rear-Sump Design

Description

Description:

• Horsepower & Torque: 415 Horsepower / 415 FT LBS
• Compression Ratio: 10.0:1
• Aluminum Heads
• Cast Crankshaft
• Hydraulic Roller Cam

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Priority Main Oiling
• 4.000″ Bore
• 4-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design

Rotating Assembly:

• Cast Crankshaft
• 3.400″ Stroke
• Forged 5.400″ Connecting Rods
• Forged Pistons
• 28oz Externally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads – HP9009
• 60cc Chamber
• 2.02″ Intake / 1.60″ Exhaust Valves
• 190cc Intake / 60cc Exhaust Runners

Cam Specs:

• Hydraulic Roller Cam
• .543 Intake / .554 Exhaust Lift
• 218 Intake / 226 Exhaust Duration
• @.050-112 Degree Lobe Separation

Ignition Timing:

• 10-16 Degrees Initial, 32-34 Total

Also Includes:

• Dual/Rear Sump Oil Pan
• Valve Covers
• Timing Cover

Notes:

• Engine timing cover is designed for standard rotation water pump and pulley kit ONLY.
